High-Performance Pallet Racking Systems
Explore our export-grade, structural steel racking inventory engineered for heavy-duty distribution centers, cold storage, and automated vertical picking environments.

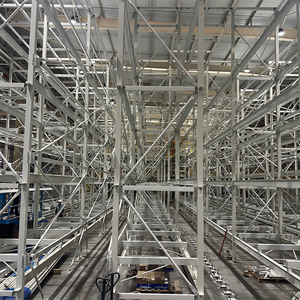

Engineering Design Pallet Rack System with High Density Layout
Contact Us

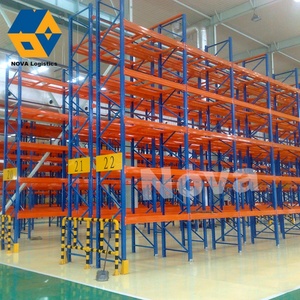

Customized Competitive Industrial Storage Heavy Duty Pallet Rack
Contact Us

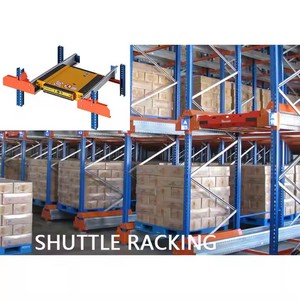

High-Density Automatic Four-Way Radio Shuttle Rack System
Contact Us

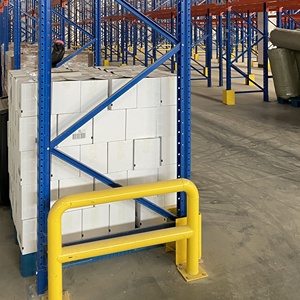

Heavy Duty Steel Pallet Rack Upright Frame Protector Barrier
Contact Us
Multi-Layer Warehouse Pallet System Industrial Shelving Rack
Contact Us

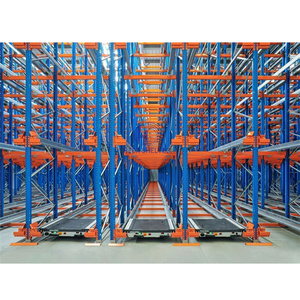

High-Density ASRS Integrated 4-Way Shuttle Storage System
Contact Us

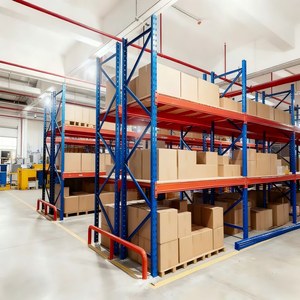

Industrial High-Rise Steel Pallet Rack with Corrosion Protection
Contact Us

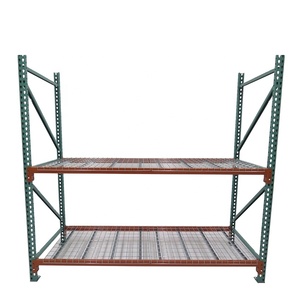

Heavy Duty CE Certified US Teardrop Pallet Racking System
Contact UsEngineering Standards for Catwalk Integrated Pallet Racking
A comprehensive analysis of structural dynamics, compliance verification, and space optimization metrics for multi-tier warehouse environments.
1. Structural Architecture & CE Certification (EN 15512 & CPR 305/2011)
When engineering CE Certified Pallet Racking With Catwalk Systems, structural safety cannot be compromised. Under the European Construction Products Regulation (CPR No 305/2011) and BS EN 15512:2020 standards, multi-tier pallet racking systems with integrated pedestrian catwalks are classified as complex load-bearing steel structures. Unlike standard selective pallet racks, catwalk systems convert dead weight and live pedestrian loads directly into the upright frames, demanding rigorous limit-state structural design.
SolidFort engineers employ Finite Element Analysis (FEA) to calculate 3D frame buckling, torsional sway, and connection stiffness. Structural components utilize high-tensile cold-formed structural steel (Grade Q355B / S350GD) to ensure ultimate tensile strength under concentrated pallet dynamic impacts and distributed catwalk live loads.
| Technical Parameter | Standard Selective Rack | Pallet Rack with Integrated Catwalk | Engineered Safety Threshold |
|---|---|---|---|
| Primary Design Code | EN 15512 / FEM 10.2.02 | EN 15512 + EN 1090-1/2 + ISO 14122 | CE Mark / Factory Production Control |
| Walkway Live Load Rating | N/A | 300 kg/m² to 500 kg/m² (3.0–5.0 kN/m²) | Uniformly Distributed Load (UDL) Tested |
| Upright Profile Width | 80mm – 100mm | 100mm – 120mm (Heavy Gauge) | S350GD High-Yield Structural Steel |
| Handrail / Kickplate Standard | Optional Guardrails | Integrated 1100mm Rail + 150mm Kickplate | ISO 14122-3 Pedestrian Compliance |
| Seismic Anchoring Depth | M12 x 100mm | M16 x 140mm (Chemical Anchor Anchoring) | C1/C2 Seismic Zone Rating |
2. Catwalk Decking Options & Ergonomic Workflows
A crucial decision when sourcing from a pallet rack catwalk manufacturer is selecting the optimal walkway decking medium. The selection directly impacts fire safety sprinkler penetration, light reflection, ergonomics, and cart rolling resistance:
- Open Steel Plank / Perforated Steel Deck: Offers up to 50% open area for fire sprinkler water penetration, compliant with NFPA 13 regulations. Anti-slip punched dimples ensure operator safety in cold storage or oiled logistics hubs.
- Heavy-Duty Welded Mesh Grating: Maximum light transmission for lower tier visibility with high point-load capacity for manual order picking carts.
- Galvanized Steel Plate over High-Density Timber: Provides a smooth, silent surface for heavy cart traffic and high-frequency manual replenishment.
Future Procurement Trends in Multi-Tier Racking
Key market transformations driving international sourcing decisions for industrial storage infrastructure over the next decade.
1. Vertical Cube Optimization over Horizontal Expansion
With industrial real estate costs escalating globally, procurement executives are pivoting from expanding footprint to capturing vertical volume. Pallet racking with integrated catwalk platforms effectively doubles or triples usable floor area without incurring additional land lease fees.
2. Hybrid Automation (AMR & Manual Catwalk Integration)
Future-proof warehouses are combining heavy pallet storage on lower tiers with human order-picking catwalks and upper-tier Autonomous Mobile Robot (AMR) sorting levels. OEM suppliers must provide tighter manufacturing tolerances (±0.5mm) to support robot navigation channels.
3. Mandatory Carbon Transparency & EN 1090 Traceability
European and North American procurement audits now mandate mill test certificates (MTC), low-carbon powder coating, and full EN 1090 factory production control (FPC) documentation to satisfy corporate ESG mandate requirements.
Technological Evolutions in Racking Manufacturing
As a leading CE certified pallet rack catwalk factory, SolidFort has integrated automated production methodologies to maximize structural consistency and project delivery speed:
Continuous Cold Roll-Forming Lines
Automated 26-pass roll forming mills ensure precise teardrop and omega upright profiles with zero micro-fracturing along continuous bend lines.
Robotic Laser Welding Systems
Multi-axis robotic arms execute 360-degree continuous welds on beam end-connectors, providing superior fatigue resistance under heavy dynamic cycles.
Electrostatic Epoxy Powder Coating
Automated 9-stage pre-treatment washing followed by thermosetting epoxy-polyester powder application delivers a scratch-resistant, 80-micron protective coating.
SolidFort Structural Storage Manufacturing Competencies
Direct factory engineering, comprehensive international compliance, and tailored layout design for complex logistics hubs.
Factory Direct Pricing & Fast Lead Time
In-house cold-roll forming, automated welding, and powder coating ensure competitive direct pricing. Standard racking orders ship in 10–15 days; engineered catwalk projects ship in 30 days.
Free CAD Layout & Structural Calculations
Our structural engineers evaluate concrete slab thickness, pallet dimensions, forklift turn radiuses, and local seismic acceleration zones to deliver full 3D CAD/BIM layouts before cutting steel.
Rigorous Compliance & Structural Warranty
Systems engineered under strict adherence to AS4084-2012, RMI (ANSI MH16.1), FEM 10.2.02, and EN 15512 standard guidelines, backed by a written structural warranty and full load plaques.
Frequently Asked Questions for Catwalk & Pallet Racking
Clear, engineer-backed answers to key technical questions raised during multi-tier procurement and facility permitting.
CE Certification for pallet racking with catwalks requires compliance with EN 1090-1 / EN 1090-2 (Execution Class EXC2 or EXC3) for load-bearing steel components and EN 15512 for structural rack design. It ensures factory production control (FPC), raw material traceability (EN 10204 3.1 certificates), certified robotic welding, and calculation reports verified by a Notified Body under the EU Construction Products Regulation (CPR 305/2011).
Catwalk load calculations account for two dynamic conditions: Uniformly Distributed Load (UDL), typically rated between 300 kg/m² to 500 kg/m² (3.0–5.0 kN/m²), and Concentrated Point Load (e.g., 1.5 kN over a 50mm x 50mm area for order picking carts). Upright column loading combines the dead weight of upper pallet beam tiers plus the cumulative pedestrian live load from all connected catwalk levels.
Yes. Due to high point loads transmitted through concentrated baseplates, multi-tier catwalk systems typically require a reinforced concrete slab with a minimum thickness of 150mm to 200mm and a minimum compressive strength of C20/25 or C25/30. Chemical anchor bolts (such as M16) are anchored into the slab according to seismic acceleration zone calculations.
A rack-supported catwalk system utilizes the pallet rack upright frames as the structural support columns for elevated walkways running between racking aisles. A structural mezzanine floor uses heavy structural steel columns (I-beams/H-beams) to create a clear open platform above which independent shelving or operations reside. Rack-supported catwalks are significantly more cost-effective for high-density manual item picking.
Catwalk platforms utilize perforated steel planks or open mesh steel grating with a minimum 50% open area ratio. This allows ceiling-mounted fire sprinkler systems to penetrate all lower walkway levels in accordance with NFPA 13 and EN 12845 fire safety codes. In-rack sprinkler pipes can also be integrated directly within the upright frame flues.
Standard pallet rack orders take 10 to 15 days for production. Custom engineered CE-certified multi-tier catwalk racking projects take approximately 25 to 30 days, including 3D CAD sign-off, roll-forming, robotic welding, and powder coating. We ship under FOB, CIF, or DDP terms with customized container loading plans.
Engineer Your CE Certified Catwalk System Today
Connect directly with SolidFort’s senior structural engineers. Get a complimentary 3D CAD layout, load capacity calculation report, and factory-direct quotation within 24 hours.
