Comprehensive Technical Guide: Sourcing Cantilever & Pallet Racking from China Exporters

In modern industrial logistics, selecting the right storage structural infrastructure is a critical capital expenditure. As global supply chains demand higher space efficiency, Cantilever Pallet Racking has emerged as the premier solution for managing non-standard, long, and heavy materials such as steel pipes, lumber, aluminium profiles, furniture, and heavy machinery dies. Sourcing directly from premier Chinese exporters like SolidFort Storage Equipment Co., Ltd. allows enterprise procurement officers to achieve optimal ROI without compromising structural integrity or international safety compliance.

1. Structural Mechanics of Cantilever Racking: Roll-Formed vs. Heavy-Duty H-Beam

Cantilever racking differs fundamental from conventional pallet racking by eliminating front vertical columns. This unobstructed horizontal span allows continuous loading of long items. However, the structural mechanics demand precise calculation of bending moments, shear stress, and arm deflection under full load conditions.

• Roll-Formed Cantilever Racking: Manufactured from cold-rolled sheet steel formed into C-shaped column profiles. Best suited for light to medium-duty applications (loads up to 1,000 kg per arm). Ideal for retail lumber yards and light industrial piping.
• Structural Steel H-Beam Cantilever Racking: Fabricated from hot-rolled H-beam structural steel profiles (e.g., UC/UB sections or Q355B steel). These systems are engineered for severe heavy-duty environments, delivering arm capacity ranging from 1,500 kg to over 5,000 kg per arm point load. They offer superior resistance to impact from heavy material handlers and forklifts.

When evaluating China cantilever racking exporters, verifying the elasticity index ($E = 210,000 \text{ N/mm}^2$) and yield strength of raw steel coil stock is paramount. Superior exporters provide material test certificates (MTC) matching EN 10204 3.1 standards with every export batch.

2. Advanced Arm Connection Engineering: Tapered Pin vs. Bolted Configurations

The junction between the upright column and cantilever arm represents the highest stress concentration point in the entire storage framework. Leading exporters implement two primary connection designs:

1. Tapered Key-Pin Connection: Uses a precision-machined heavy-gauge pin that locks the arm into column punchings. Under load, the downward force increases the mechanical wedge action, making the joint tighter. This dynamic feature allows fast height adjustment without specialized tools.
2. Rigid Bolted Connection: Incorporates thick steel endplates bolted to the column using grade 8.8 or 10.9 high-tensile structural bolts. This configuration provides maximum torsional rigidity, highly recommended for outdoor double-sided cantilever systems exposed to lateral wind shear forces.

2026–2030 Future Procurement Trends in Global Racking Systems

As logistics operations transition toward Industry 4.0 standards, global warehouse buyers are shifting their procurement criteria when partnering with Chinese racking exporters. Three key trends define the next decade of heavy-duty storage infrastructure:

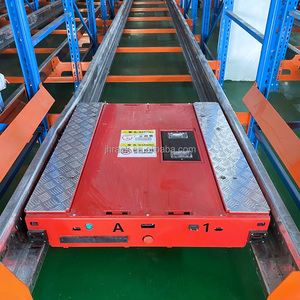

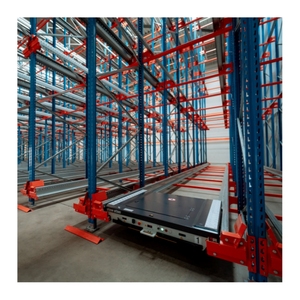

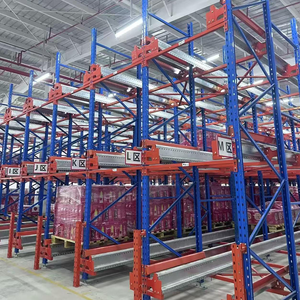

1. Automated Guided Vehicle (AGV) & AS/RS Compatibility

Traditional manual forklift loading is rapidly giving way to Automated Guided Vehicles (AGVs) and Automated Storage and Retrieval Systems (AS/RS). This shift demands ultra-tight manufacturing tolerances. Exporters must achieve structural deflection ratios well within $L/300$ rather than traditional $L/200$ limits to prevent sensor misalignments during robotic picking operations.

2. Sustainable Green Steel & Eco-Coating Systems

ESG (Environmental, Social, and Governance) compliance is now mandatory for enterprise supply chains in Europe and North America. Top Chinese exporters are adopting low-carbon electric arc furnace (EAF) steel and zero-VOC heavy metal-free powder coating systems. Pre-treatment processes have evolved to silane chemical conversion coating, drastically reducing water usage while enhancing salt spray corrosion resistance beyond 500 hours.

3. IoT Structural Integrity Monitoring Integration

Next-generation cantilever racking installations incorporate strain-gauge sensors embedded directly into baseplates and top columns. These real-time IoT modules transmit continuous deflection and impact telemetry to warehouse management software (WMS), alerting facility managers to accidental forklift strikes or structural overload conditions before catastrophic failure occurs.

Key Enterprise Advantages of Partnering with SolidFort Storage Equipment

Based in the Tongan District of Xiamen, China, SolidFort Storage Equipment Co., Ltd. operates a modern 30,000㎡ manufacturing facility engineered for export excellence. Our factory direct capabilities eliminate intermediary markups, delivering premium certified racking systems to over 53 countries.

• Complete Quality Traceability: Raw steel coil inspection, automated laser cutting, robotic welding cells, and electrostatic powder coating lines operate under strict ISO9001 quality management protocol.
• In-House Structural Testing: Every custom arm and beam profile undergoes rigorous full-scale load testing in our physical laboratory to verify theoretical FEA (Finite Element Analysis) structural stress models.
• Comprehensive Export Support: We supply full container loading optimization (FCL), bespoke steel-strapped export packaging, clear installation guides, and complete CAD/LARC documentation required for building permits worldwide.
