Featured Compact & High-Density Pallet Racking Systems
Precision-engineered industrial pallet storage solutions designed for maximum cubic footprint utilization, certified structural safety, and high-throughput warehouse logistics.
Heavy-Duty Stack

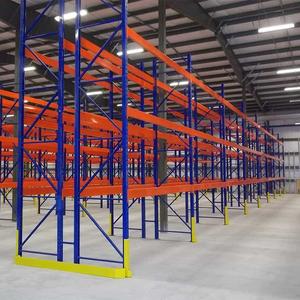

Ventilated Wire Mesh Deck Pallet Racking System Heavy Duty Damp-Proof 5-Layer Warehouse Stacking Racks 2000kg
- Load Capacity: 2,000 kg / Beam Level
- Feature: Damp-Proof Wire Deck
- Compliance: ISO9001 / CE
Standard Selective

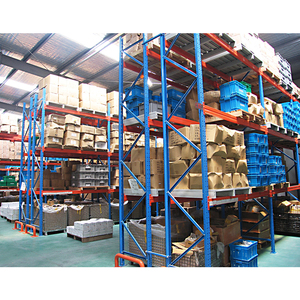

Standard Pallet Rack Warehouse Pallet Rack Assemble Racks Reliable Quality Heavy Duty Warehouse Pallet Racking System
- Selectivity: 100% Direct Access
- Beam Span: Custom (up to 3.9m)
- Material: Q235B / Q355B Steel
Boltless Compact

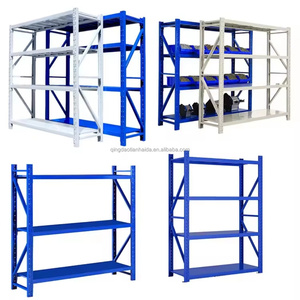

Industrial 3-Layer Boltless Adjustable Galvanized Carbon Steel Pallet Rack Compact Racking System for Warehouse & Garage
- Adjustment: 50mm / 75mm Pitch
- Finish: Hot-Dip / Pre-Galvanized
- Assembly: Snap-In Connector
Cold Chain Ready

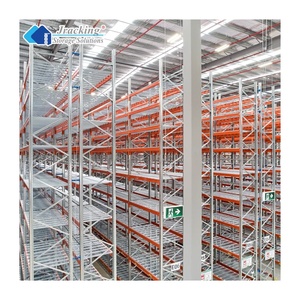

Jracking Compact Industrial Warehouse Rack Heavy Duty Steel Pallet Racking System for Cold Storage CE Certified
- Temp Rating: Down to -30°C
- Certification: CE / FEM 10.2.02
- Coating: Sub-Zero Epoxy Powder
Space-Saving

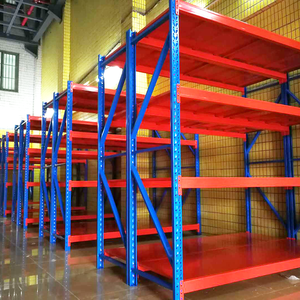

Compact Heavy Duty 5 Layer Adjustable Thickened Pallet Rack with 300kg Load Capacity for Small Spaces Cold-Rolled Steel
- Footprint: Compact Footprint
- Application: Small Business / Parts
- Structure: Cold-Rolled Steel
High Density LIFO

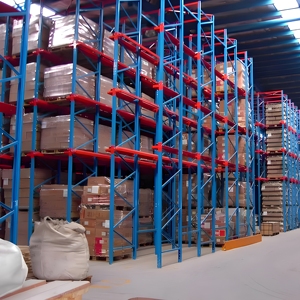

500~4000kg Industrial Drive-in Racks CE Certified Heavy Duty High Density Compact Steel Powder Coated Pallet Racking System
- Capacity Range: 500 - 4,000 kg
- Density Gain: +75% Storage Capacity
- Standard: AS4084 Compliant
Motorized Mobile

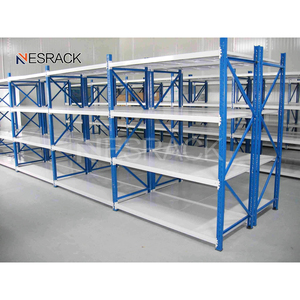

Mobile Compact Shelving Filing Heavy Duty Storage Pallet Racks Metal Shelf Manual Operation High Density Storage Racking System
- Operation: Manual / Electric Drive
- Space Utilization: Up to 90% Floor Use
- Safety: Infrared Photoelectric Sensors
Bulk Storage
Warehouse Storage Drive in Rack System Compact Storage Racking Heavy Duty Drive-In Pallet Racking System With LIFO System
- Logistics Logic: LIFO Bulk Stacking
- Rail System: Formed Heavy Duty Rails
- Upright Depth: Configurable (Up to 10 deep)
Executive Summary: Sourcing Compact Pallet Racking from Premier Chinese Factories
As global industrial real estate costs continue to escalate, logistics managers, warehouse architects, and supply chain executives face unprecedented pressure to optimize cubic space utilization. Compact pallet racking systems—encompassing Drive-In, Radio Shuttle, Push-Back, and Mobile Racking modalities—represent the apex of modern high-density material handling infrastructure. Selecting a tier-one manufacturer from China is no longer merely a cost-reduction strategy; it is a strategic decision to partner with engineering powerhouses equipped with advanced continuous cold-roll forming lines, automated robotic welding cells, and rigorous finite element analysis (FEA) testing regimes.
Leading Chinese pallet racking manufacturers, operating out of major industrial hubs such as Xiamen and Jiangsu, produce storage systems compliant with international structural codes including Australian Standard AS4084-2012, the Rack Manufacturers Institute (RMI ANSI MH16.1) specification in North America, and European FEM 10.2.02 / EN 15512 design standards. This technical whitepaper explores the technological paradigms, procurement strategies, and manufacturing innovations that distinguish top-tier Chinese compact pallet rack suppliers in 2026 and beyond.
E-E-A-T Manufacturing Note: SolidFort Storage Equipment operates a modern 30,000㎡ manufacturing hub equipped with 14 automated roll-forming lines, Swiss Gema electrostatic powder-coating systems, and dedicated structural testing rigs. Every batch of Q235B and Q355B cold-rolled steel undergoes raw material tensile verification to guarantee structural load integrity under extreme operating conditions.
Precision Roll Forming & Engineering Rigor
Our facility leverages automated multi-pass roll-forming machinery capable of punching precise tear-drop, 50mm, and 75mm pitch pattern upright profiles with zero structural micro-fracturing. Combined with continuous seam welding and certified surface treatment, our racking structural columns maintain exact vertical alignment and buckle resistance even under dynamic seismic loading.
Technical Modalities of Compact Pallet Racking Architecture
Achieving high volumetric efficiency requires selecting the correct mechanical layout tailored to inventory turn rates, SKU diversity, and forklift equipment capabilities. Below is an engineering evaluation of the primary compact racking systems produced by leading Chinese manufacturers:
Drive-In & Drive-Thru Racking
Eliminates working aisles by allowing forklifts to drive directly into storage lanes. Ideal for high-volume, low-SKU inventory operating on a Last-In, First-Out (LIFO) or First-In, First-Out (FIFO) logic. Increases space utilization by up to 75–85% compared to conventional selective rack layouts.
Radio Shuttle Cart Systems
Semi-automated compact racking where self-propelled battery-powered shuttle vehicles transport pallets along deep channel rails. Eliminates forklift lane entry, dramatically speeding up cycle times, reducing structural impact damage, and pushing operational density above 85%.
Mobile Heavy-Duty Racking
Racking frames mounted on motorized guided mobile bases running on embedded floor tracks. With only one moving aisle required for entire racking blocks, mobile compact systems offer 100% SKU selectivity while doubling effective storage density in cold storage facilities.
Engineering Performance & Footprint Utilization Matrix
Before issuing a Request for Quotation (RFQ) to a Chinese rack factory, engineering teams must evaluate key operational trade-offs between space utilization, throughput speed, and capital expense per pallet position.
| Compact Racking System | Cubic Density Gain | SKU Selectivity | Forklift Risk Level | Estimated Cost / Pallet | Ideal Logistics Application |
|---|---|---|---|---|---|
| Selective Pallet Rack | Baseline (35-40%) | 100% Direct Access | Low | $45 – $95 | High SKU variety, fast-moving distribution |
| Drive-In Storage System | High (65-75%) | Low (LIFO Lane-based) | Moderate to High | $90 – $160 | Homogeneous bulk cargo, seasonal SKU batches |
| Radio Shuttle System | Very High (80-88%) | Medium (Deep Lane FIFO/LIFO) | Very Low | $160 – $280 | Cold storage, food & beverage, high throughput |
| Push-Back Rack (2-6 Deep) | High (60-70%) | Medium (Per-lane LIFO) | Low | $130 – $220 | Medium turnover items, fast staging zones |
| Mobile Heavy Duty Racks | Maximum (85-90%) | 100% (Aisle-on-Demand) | Very Low | $250 – $450 | Ultra-high density cold rooms, high land-cost hubs |
Drive-In & Drive-Thru Engineering Rigor
Drive-in compact racking demands strict tolerance controls on top tie beams, ground guide rails, and heavy-duty arm brackets. SolidFort engineers supply custom anchor shoe designs and high-visibility column protectors that absorb forklift deflection, guaranteeing operational safety under max-load capacity conditions.
Future Procurement Trends: Industrial Storage Systems (2026–2035)
The global warehousing ecosystem is undergoing a dramatic shift toward semi-automation, environmental sustainability, and heightened seismic compliance. When procuring compact pallet racking systems from Chinese suppliers, enterprise buyers should align with the following micro- and macro-trends:
1. Automated Guided Vehicle (AGV) & AMR Integration
Modern compact rack structures are increasingly retrofitted for Autonomous Mobile Robots (AMRs) and automated forklifts. This requires manufacturers to maintain tighter fabrication tolerances (within ±1.0mm per 10m height span) and implement laser-guided floor embedding tracks for error-free robot navigation.
2. Cold Chain Decarbonization & Sub-Zero Durability
With global cold chain logistics expanding exponentially, compact racking engineered for temperature-controlled environments (down to -30°C) must utilize steel formulations with high impact toughness (preventing cold embrittlement). Advanced micro-zinc powder coating and hot-dip galvanized finishes prevent rust formation driven by freeze-thaw condensation cycles.
3. ESG Compliance & Sustainable Steel Sourcing
Leading buyers in Western markets prioritize suppliers adhering to zero-VOC electrostatic powder coating processes, closed-loop water treatment in pretreatment wash bays, and carbon-neutral steel procurement certificates from top-tier mills (such as Baosteel or Shougang Steel).
4. Seismic Resiliency & Structural Finite Element Analysis (FEA)
Earthquake-prone regions in North America, South America, and Oceania mandate rigorous seismic rack design under RMI MH16.1 and AS4084 standards. Factories providing FEA simulation models, custom floor slab anchor calculations, and certified moment-resisting baseplates are gaining decisive competitive market share.
SolidFort Enterprise Advantage: Why Global Importers Trust Our Factory
SolidFort Storage Equipment Co., Ltd. has established itself as an authoritative leader among Chinese industrial rack manufacturers. Our customer-centric approach combines direct factory pricing with comprehensive engineering design support:
Global Engineering Compliance
Every rack design is structurally verified to comply with AS4084-2012, RMI ANSI MH16.1, and FEM 10.2.02 codes. Full engineering calculation packs and LARC (Load Application and Rack Configuration) drawings are provided with every order.
Complimentary CAD & 3D Layouts
Send us your building dimensions, pallet specifications, and forklift model details. Our structural engineering team will deliver a optimized 2D CAD floor plan and 3D rendering within 24–48 hours, free of charge.
Rapid Production & Export Packing
Standard order lead times range between 10–15 days. Steel components are tightly bundled with protective corrugated paper and steel strapping, optimized for max CBM utilization inside 40ft High Cube containers.
Frequently Asked Questions (Buyer Procurement FAQ)
In-depth technical answers addressing load calculations, installation requirements, safety standards, and international logistics.
Component costs depend on steel market spot prices, required beam load capacity, and system complexity. Standard selective pallet racking typically averages USD 45–95 per pallet position. High-density compact solutions such as Drive-In racking range from USD 90–160 per position, while semi-automated Radio Shuttle systems range from USD 160–280 per position (including shuttle vehicle costs). These estimates reflect factory-direct FOB material prices.
Yes. Under ANSI/RMI MH16.1, AS4084, and European EN standard codes, every rack upright column must be securely anchored to the concrete slab using certified expansion bolts or chemical epoxy anchors. Anchoring resists overturning moments, prevents frame displacement caused by forklift impacts, and transfers seismic dynamic forces down into the foundation. Slab thickness should ideally exceed 150mm with minimum concrete strength of C25/30.
Racking load capacity consists of two independent variables: Beam Pair Capacity (the Uniformly Distributed Load capacity of two horizontal beams, e.g., 2,500 kg per level) and Upright Frame Capacity. Crucially, upright frame capacity is non-linear and decreases significantly as the unsupported vertical distance (beam level spacing) increases. Frame capacity must always be verified by structural engineers using load application plaques and LARC documentation.
For standard North American GMA pallets (40 × 48 inches / 1016 × 1219 mm), the standard rack upright depth is 42 inches (1067 mm), leaving a 3-inch (75mm) front and rear pallet overhang. Standard beam length is 96 inches (2438 mm) for 2-pallet positions. For Euro pallets (1200 × 800 mm or 1200 × 1000 mm), frame depths are typically engineered at 1100 mm with 2700 mm beam spans.
Under NFPA 13 guidelines, high-density compact racking must maintain longitudinal flue spaces (minimum 6 inches between back-to-back rows) and transverse flue spaces (gaps between pallets side-by-side) to allow sprinkler water penetration. Wire mesh decking with >50% open mesh area is highly recommended over solid timber decking to satisfy fire inspection compliance.
Standard containerized orders are manufactured and dispatched within 10 to 15 business days from deposit receipt. Large-scale engineered projects take approximately 30 days. We support FOB, CIF, CFR, and DDP (Delivered Duty Paid) trade terms, supplying full container loading plans and mill test certificates (MTC) with every shipment.
Importers should request ISO 9001:2015 Quality Management certification, ISO 14001 Environmental management compliance, CE declaration certificates for motorized or shuttle systems, raw material structural steel mill certificates (Q235B/Q355B), and third-party load test reports certified by agencies such as SGS, TÜV, or Bureau Veritas.
Optimize Your Warehouse Footprint Today
Connect directly with our senior structural racking engineers. Receive a free CAD layout, load capacity calculation, and factory-direct price quotation within 24 hours.
