Industrial Drum Storage & Heavy-Duty Pallet Racking: Engineering Guide
Managing industrial chemical fluids, lubricants, raw petroleum, and hazardous liquids presents structural risks that traditional static pallet racking cannot safely solve. As China's premier manufacturer and direct exporter of custom drum storage racking systems, SolidFort engineers bespoke racking solutions that merge structural load security, environmental containment, and ergonomic material handling.
Standard 55-gallon (208-liter) steel and polyethylene drums impose unique stress profiles on warehouse racking. Unlike static unitized pallets, liquid drums generate shifting dynamic loads during forklift transport and horizontal placement. Our specialized drum storage racking systems integrate heavy-duty cradle beams, anti-roll safety stops, spill containment sumps, and reinforced upright profiles to ensure strict compliance with OSHA, EPA 40 CFR 264.175, and international racking standards including ANSI/RMI MH16.1, AS4084-2023, and FEM 10.2.02.
Horizontal vs. Vertical Drum Racking Structural Design
Choosing between horizontal drum cradle racking and vertical palletized drum racking depends directly on your operational throughput, decanting requirements, and fluid spill risk parameters:
- Horizontal Cradle Drum Storage: Positions drums horizontally on heavy-duty contoured steel cradles or adjustable saddles. This layout permits direct dispensing and decanting via faucets while the drum remains securely stored on the rack level. Built-in 2° to 5° tilt angles ensure maximum fluid evacuation.
- Vertical Palletized Drum Storage: Utilizes reinforced selective pallet racks equipped with galvanized steel sumps or heavy-duty wire mesh decking to support upright drums on plastic or steel runners. Ideal for high-density storage where decanting is executed elsewhere.
Secondary Spill Containment
Integrated leak-proof sump trays placed below drum storage bays catch accidental drips and major punctures. Custom sumps feature galvanized steel wire grating and EPA-compliant retention capacity exceeding 110% of the largest stored drum.
High-Tensile Q355B Steel
Roll-formed upright frames and structural I-beams are cold-formed from certified high-tensile Q355B steel, offering exceptional yield strength under concentrated point loads created by heavy liquid drums (weighing up to 250kg per 55-gal drum).
Anti-Corrosive Coatings
Designed for aggressive chemical environments, our drum racking features electrostatic epoxy-polyester powder coating (60-90 microns) or Hot-Dip Galvanizing (HDG per ISO 1461) to resist chemical corrosion and continuous moisture exposure.
Structural Comparison: Racking Systems for Drum & Heavy Pallet Loads
Evaluate performance metrics across structural configurations to select the ideal system for your facility:
| Racking System Type | Load Capacity per Bay | Spill Containment | Access Flexibility | Primary Industrial Application |
|---|---|---|---|---|
| Horizontal Drum Cradle Racks | 1,500 kg – 4,000 kg | Integrated Sump Trays | 100% Selective / Decanting | Chemical Processing, Lubricant Dispensing |
| Selective Heavy-Duty Pallet Racking | 1,000 kg – 4,500 kg/level | Modular Spill Decks | 100% Direct Access (FIFO) | General Logistics, Raw Material Warehouses |
| Radio Shuttle High-Density Racking | Up to 1,500 kg/pallet | Floor-Level Containment | LIFO / FIFO Automated | Bulk Chemical Storage, Cold Chain Logistics |
| Drive-In / Drive-Thru Racking | 1,000 kg – 2,000 kg/pallet | Optional Bunded Aisles | High Density LIFO | Homogeneous Finished Goods, Beverage Drums |
| Automated ASRS Drum Systems | Custom up to 2,000 kg/unit | Automated Sensor Sump | Computerized Direct Access | Smart Chemical Centers, High-Bay Automated Plants |
Future Procurement Trends in Drum & Industrial Pallet Storage
As international supply chains shift toward heightened environmental accountability, automation, and workplace safety, purchasing managers and facility engineers are updating their procurement criteria for industrial drum storage racking systems.

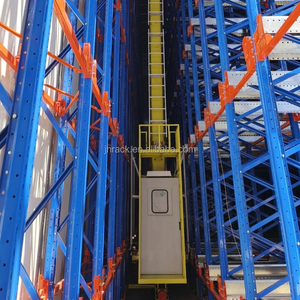

1. Automated ASRS & Radio Shuttle Integration for Liquid Storage
Traditional manual forklift loading of chemical drums poses ergonomic safety risks and potential impact damage to racking uprights. Global buyers are increasingly procuring Radio Shuttle Racking and Automated Storage & Retrieval Systems (ASRS) configured with explosion-proof (ATEX certified) shuttle cars. These systems eliminate driver error, maximize vertical storage density up to 15 meters, and isolate personnel from hazardous fluid environments.
2. Smart IoT Leak & Structural Stress Monitoring
Next-generation chemical warehouses are specifying drum racking equipped with embedded IoT sensors. Strain gauges placed along critical beam spans monitor deflection limits (L/240 ratio compliance), while optical and conductive fluid sensors at the base of secondary spill sumps alert warehouse management software (WMS) instantaneously upon detecting fluid leaks.
3. Sustainable Zero-VOC & Circular Steel Sourcing
With EU CBAM (Carbon Border Adjustment Mechanism) and global ESG compliance taking effect, tier-1 procurement teams demand fully traceable, low-carbon steel. SolidFort utilizes closed-loop recycled Q235B/Q355B coil stock processed in eco-efficient mills and finished with 100% heavy-metal-free, zero-VOC powder coatings.
4. Modular, Rapid-Reconfiguration Cradle Attachments
Rigid, single-purpose racks are being replaced by modular racking systems. Modern drum racking designs feature clip-on, boltless drum cradles that can be rapidly retrofitted onto standard selective pallet racking step beams. This modularity allows facilities to reallocate bays between standard unitized pallets and chemical drum cradles in minutes without structural welding.
Industry & Technological Development Trends (2026–2030)
The industrial warehouse storage sector in China is undergoing a tech-driven transformation. In response to demanding global compliance requirements, top manufacturers are advancing structural design and automated manufacturing methodologies.
1. Finite Element Analysis (FEA) & Seismic Structural Optimization
Advanced finite element simulation tools allow structural engineers to analyze dynamic stress distributions across welded joints, upright perforations, and cradle contact points under severe seismic accelerations. SolidFort designs custom drum storage systems calculated precisely for high seismic zones (Zone 3/4 per RMI guidelines), ensuring racks resist sway and prevent drum dislodgement during seismic shock.
2. Robotic Laser Cold Roll-Forming Precision
Continuous multi-station cold roll-forming lines integrated with robotic laser punching ensure tight manufacturing tolerances (under ±0.5mm) across 12-meter upright lengths. Precise teardrop, diamond, and 75mm/50mm pitch perforations allow seamless hook-in beam connector locking, preventing structural beam detachment under heavy liquid loads.
3. Automated Hazardous Material Compliance Systems
As regulations for storing hazardous materials (HAZMAT) become stricter worldwide, drum racking engineering now mandates integrated fire suppression flues, grounded anti-static earth straps to prevent static electricity discharge, and specialized ventilation spacing engineered directly into rack frames.
Why SolidFort is China's Preferred Drum Racking Manufacturer & Exporter
SolidFort Storage Equipment Co., Ltd. operates a modern 30,000㎡ manufacturing plant in Tongan District, Xiamen, China. Built on rigorous engineering discipline and direct factory supply, we support clients in over 53 countries with engineered storage hardware.
Factory-Direct Pricing & Fast 10-15 Day Production
By eliminating middleman distributor markups and operating raw steel coil stock reserves, standard racking orders ship within 10 to 15 days, with engineered custom projects completed in ~30 days.
Certified Compliance (AS4084 / RMI / FEM / ISO)
Every racking beam and frame is manufactured under ISO 9001 certified quality controls, verified through third-party tensile testing, dynamic beam deflection testing, and certified CE documentation.
Full CAD Layouts & Structural LARC Drawings
Our engineering division delivers free 2D/3D warehouse floor plan layouts, pallet/drum position calculations, and formal Load Application and Rack Configuration (LARC) engineering plaques for code approval.
Container-Optimized Export Shipping
Custom steel bundling, corner protection, and computer-assisted 3D container packing layouts maximize loading space efficiency on FOB, CIF, or DDP terms, lowering ocean freight cost per pallet position.
Frequently Asked Questions (FAQ) – Procurement & Engineering
In horizontal drum storage configurations, a standard 96-inch (2438mm) beam pair comfortably fits 3 to 4 standard 55-gallon drums side by side on specialized cradle supports. Depending on fluid density (e.g., heavy industrial oils or concentrated chemicals weighing up to 250kg per drum), a 2-level or 3-level rack bay typically supports between 6 and 12 drums per bay. Structural beam capacities are engineered specifically to accommodate total concentrated point loads exceeding 2,500kg per level.
Under EPA 40 CFR 264.175 guidelines, secondary spill containment systems for hazardous liquid containers must possess sufficient capacity to contain 100% of the volume of the largest single container or 10% of the total volume of all stored containers, whichever is greater. SolidFort manufactures custom leak-proof galvanized steel sumps integrated directly beneath the lowest drum rack level to ensure full environmental compliance.
Yes, absolute floor anchoring is mandatory. According to ANSI/RMI MH16.1 and AS4084 standards, every baseplate of an upright frame must be securely anchored to the concrete slab using heavy-duty expansion or mechanical wedge anchors. Anchoring prevents rack displacement during forklift loading impacts, provides overturning stability for high height-to-depth ratios, and resists seismic forces.
For standard oils and non-corrosive petroleum products, our heavy-duty electrostatic epoxy-polyester powder coating (60-90 microns) offers durable scratch resistance. For harsh chemical environments, acid fumes, outdoor storage, or cold rooms, we strongly recommend Hot-Dip Galvanizing (HDG per ISO 1461), which bonds a zinc protective coating over the steel to prevent chemical rust and oxidation.
Under RMI and FEM guidelines, allowable horizontal beam deflection under full maximum load must not exceed L/240 (where L is the clear span length of the beam). For an 8-foot (96") beam, maximum allowable deflection is 0.4 inches (10mm). SolidFort structural engineers verify all beam profiles through Finite Element Analysis (FEA) to guarantee beam deflection stays well within safe operating thresholds.
Our standard manufacturing lead time is 10 to 15 business days from technical drawing approval. Large-scale engineered projects take approximately 30 days. We export globally under FOB, CIF, CFR, or DDP terms. Every shipment includes container optimization layouts, steel banding, plastic film wrap, and heavy corner protectors to guarantee zero shipping damage.
Yes, custom OEM manufacturing is our core strength. In addition to standard 55-gallon (208L) steel and plastic drums, we custom-engineer cradles, rollers, and racking supports for 30-gallon drums, 110-gallon overpack drums, 1,000-liter IBC totes, and specialized cylindrical pressure vessels.
To generate a free technical proposal and CAD drawing, please provide: (1) Warehouse dimensions & clear height, (2) Drum/Pallet dimensions & gross filled weight, (3) Number of storage levels required, (4) Forklift model & maximum lift height, and (5) Specific environmental or spill containment requirements.
Optimize Your Industrial Warehouse Storage Safety Today
Connect directly with SolidFort racking structural engineers for free CAD floor layouts, detailed engineering calculations, and factory-direct pricing quotes within 24 hours.
