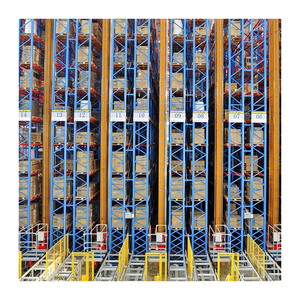

Automated Pallet Racking System Smart Inventory Circulation Industrial Warehouse Storage Radio Shuttle Steel

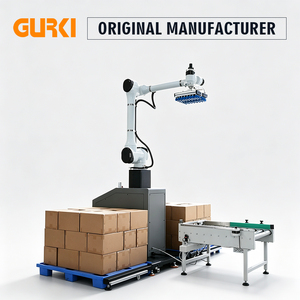

GURKI High Speed Full Automatic Robotic Palletizing Systems Carton Case Box Cobot Palletizer For Warehouse/Factory
Heavy-Duty Four-Way Shuttle Storage System Automated Pallet Racks for Industrial Warehousing & Intralogistics
Maoyuan Shuttle Cruiser Rgv Rail Guided Vehicle Pallet Shuttle Conveyor System 1500kg Capacity Automatic Cart Storage Smart
Automated Shuttle Pallet Racking System Two Way Shuttle Racking System

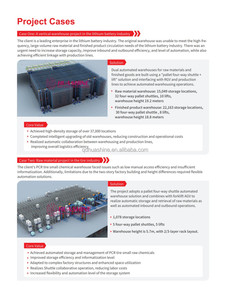

High-Density, Flexible, Intelligent ASRS Warehouse Storage WITH BOX Smart Pallet Four-Way Shuttle System HUASHINE INTELLIGENT

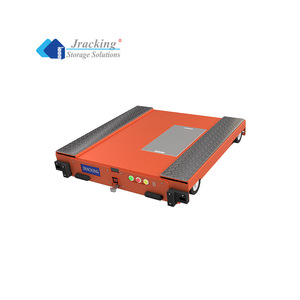

Jracking CE Certified Automated Four Way Radio Shuttle River-type Pallet Racking System For Industrial Warehouse
Customized Warehouse Storage Rack Pallet Flow Rack Shelving Lineside Roller Flow Rack Gravity Carton Flow Racking
Executive Overview: The Shift to Custom Automated Pallet Shuttle Systems
Modern supply chain architecture is undergoing a radical transformation driven by soaring industrial real estate costs, labor shortages, and demanding omnichannel fulfillment SLAs. Modern logistics operations require warehouse storage systems that optimize spatial density while maximizing material handling throughput. Custom OEM Automated Pallet Shuttle Systems represent the pinnacle of high-density automated storage and retrieval system (ASRS) engineering. By replacing conventional forklift access aisles with deep-lane steel racking channels navigated by self-propelled robotic carts, automated pallet shuttle technology enables facility operators to achieve up to 85% cubic footprint utilization.
As a leading China-based original equipment manufacturer (OEM) operating a 30,000㎡ state-of-the-art production facility, SolidFort Storage Equipment Co., Ltd. designs and manufactures heavy-duty pallet racking and intelligent shuttle systems tailored to global industry specifications. Whether deploying 2-way semi-automated radio shuttle carts or fully integrated 4-way multi-shuttle ASRS networks, custom OEM manufacturing provides the structural flexibility, load-bearing precision, and control protocol integration necessary for complex industrial logistics.
2-Way Shuttle vs. 4-Way Shuttle ASRS Architecture
Choosing between a 2-Way Radio Shuttle system and a 4-Way Smart Pallet Shuttle matrix hinges on SKU diversity, throughput requirements, and operational automation targets:
- 2-Way Radio Shuttle Systems: Designed primarily for deep-lane LIFO (Last-In, First-Out) or FIFO (First-In, First-Out) storage of high-volume, low-SKU product lines. Forklifts transport the shuttle cart to designated rails, after which the cart autonomously lifts and traverses pallets along the lane channel. Ideal for cold storage, beverage logistics, and bulk raw materials.
- 4-Way Multi-Directional Shuttle ASRS: Represents a fully automated, high-density matrix system where intelligent shuttles move both longitudinally along deep storage lanes and laterally across cross-aisles. Integrated with vertical reciprocating conveyors (lifts) and Warehouse Control Software (WCS), 4-way shuttle systems operate without direct forklift intervention in storage bays, delivering unmatched throughput and 100% flexible SKU management.
Information Gain Engineering Note: Unlike standard static racking, automated shuttle racking channels experience localized dynamic loads, acceleration impulses, and vibrational harmonics. SolidFort's structural engineers utilize high-tensile Q355B steel roll-formed uprights and specialized guide rail profiles engineered to withstand continuous cycle impacts without profile distortion or alignment shift.
Key Engineering Advantages of Custom OEM Automated Shuttle Systems
Cubic Space Maximization
Eliminates working aisles, increasing storage capacity by 80% to 200% compared to traditional selective racking in identical warehouse footprints.
Cold Chain Thermal Efficiency
Reduces air volume overhead in refrigerated facilities down to -25°C or lower, drastically lowering per-pallet energy consumption and cooling overhead.
Forklift Damage Mitigation
Because lift trucks stay strictly at the outer aisle faces, structural rack damage caused by driver collision inside storage lanes is completely eliminated.
Technology & Development Trends in Automated Pallet Shuttles
The global automated material handling industry is undergoing rapid technological advancements. Industrial equipment buyers and intralogistics system integrators must stay ahead of emerging tech paradigms to ensure long-term ROI and operational adaptability.
1. Transition to Lithium Iron Phosphate (LiFePO4) & Fast-Charging Supercapacitors
Legacy lead-acid shuttle batteries are rapidly being phased out due to thermal degradation, long charge cycles, and heavy maintenance overhead. Modern OEM shuttle systems utilize industrial-grade LiFePO4 battery packs paired with intelligent contact-charging rails or wireless inductive charging stations inside the rack grid. Supercapacitor-assisted power units now allow automated shuttles to top-up charge in 3-5 minute intervals during vertical lift movements, enabling continuous 24/7 autonomous operations without battery swap downtime.
2. AI-Driven Fleet Management & Edge Computing Integration
Next-generation 4-way shuttle ASRS platforms are equipped with embedded microprocessors, LiDAR obstacle detection sensors, and optical positioning encoders. Combined with cloud-connected Warehouse Control Systems (WCS), real-time algorithms dynamically balance shuttle workloads, optimize pallet allocation paths, perform predictive collision avoidance, and flag structural alignment anomalies automatically.
3. Modular OEM Mechanical Standardization & Cold-Chain Specialization
Industrial buyers increasingly reject proprietary, rigid automation frameworks in favor of open, modular OEM racking profiles. Modular design allows facility operators to begin with a 2-way semi-automated shuttle racking structure and seamlessly upgrade to a 4-way fully automated ASRS network by retrofitting lateral rails and vertical lifters. Furthermore, special metallurgy treatment and low-temperature electronic components now allow shuttles to operate reliably in harsh deep-freeze environments down to -30°C without mechanical seizure or condensation failure.
| Storage System Type | Space Utilization | Selectivity Rate | Handling Throughput | Automation Grade | Typical ROI Period |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% - 50% | 100% Direct | Medium | Manual (Forklift) | Immediate |
| Drive-In Racking | 65% - 75% | Low (LIFO) | Low - Medium | Manual (Forklift inside) | 12 - 18 Months |
| 2-Way Radio Shuttle Racking | 75% - 85% | Medium (LIFO/FIFO) | High | Semi-Automated | 14 - 24 Months |
| 4-Way Multi-Shuttle ASRS | 85% - 92% | High / Dynamic | Very High (Continuous) | Fully Automated | 18 - 36 Months |
Future Procurement Trends for Automated Pallet Shuttle Systems
Sourcing automated material handling equipment requires looking beyond initial hardware costs to evaluate Total Cost of Ownership (TCO), engineering compliance, and supply chain resiliency. Key procurement trends shaping global market purchases include:
Direct-from-Factory OEM Collaboration
Global logistics managers are bypassing intermediary brokers to work directly with verified Chinese OEM racking manufacturers. Direct factory engagement grants precise structural engineering input, custom CAD channel profiling, and substantial cost savings on large-scale roll-formed steel components.
Mandatory Multi-Standard Structural Compliance
Cross-border buyers insist on verified compliance with regional building and safety codes. Reputable manufacturers must design racking components in strict accordance with Australian AS4084-2012, American RMI (ANSI MH16.1), European FEM 10.2.02, and ISO 9001 quality management guidelines.
Turnkey OEM Customization & Interoperability
Procurement teams demand custom shuttle body dimensions, load capacity configurations (from 500kg to 1,500kg+ per pallet), and open communication protocols (such as Modbus TCP, CANbus, or REST APIs) to seamlessly connect hardware with existing WMS platforms.
SolidFort Enterprise Advantages & Production Infrastructure
SolidFort Storage Equipment Co., Ltd. is a specialized factory-direct racking manufacturer headquartered in Tongan District, Xiamen, China. Operating a modern 30,000㎡ industrial production facility, SolidFort delivers end-to-end storage racking systems engineered for maximum durability, structural precision, and swift worldwide delivery.
Why Global Logistics Buyers Choose SolidFort:
- 30,000㎡ Modern Production Base: Equipped with high-precision continuous roll-forming lines, automated robotic welding cells, and eco-friendly electrostatic powder-coating equipment.
- Proven Global Footprint: Engineered storage systems successfully exported to 53+ countries across North America, Europe, Australia, the Middle East, and Southeast Asia.
- Factory-Direct Lead Times: Standard pallet racking orders shipped within 10–15 days; complex custom engineered shuttle projects completed in approximately 30 days.
- Rigorous Quality Control & Certification: All structural designs reference AS4084, RMI (ANSI MH16.1), and FEM standards under ISO certified quality assurance procedures.
- Engineering-Led Technical Consultation: Every order is reviewed by structural design engineers who evaluate slab depth, concrete compressive strength, forklift mast heights, and seismic zone parameters prior to production.
Export-Ready Packaging & Logistics Support
International freight integrity is paramount. SolidFort utilizes specialized steel strapping, protective corner guards, and custom container loading plans. Component bundles are dimensioned specifically to maximize container space utilization on FOB, CIF, or DDP terms, preventing transit distortion and minimizing shipping freight costs.
Frequently Asked Questions
Comprehensive responses from SolidFort's engineering department addressing pricing, floor anchor specifications, load calculations, and OEM customization.
Q What does an automated pallet shuttle system cost per pallet position?
Q Do automated pallet shuttle racks require mandatory floor anchoring?
Q How is the load capacity of shuttle rack rails calculated?
1. Shuttle Rail Profile Capacity: Calculated based on uniformly distributed load (UDL) and point-load impact from shuttle wheels carrying up to 1,500kg+ per pallet.
2. Upright Frame Buckling Capacity: Calculated taking into account vertical beam spacing, unbraced column length, and dynamic braking forces exerted by traversing carts. Always refer to SolidFort's engineered Load Application and Rack Configuration (LARC) drawings prior to altering beam levels.
Q Can SolidFort manufacture custom OEM shuttle components for non-standard pallet sizes?
Q What is the lead time for standard versus engineered OEM orders?
Q How often should automated shuttle racking systems be inspected?
Q Which global quality and safety standards do SolidFort products comply with?
