Featured Intelligent & Heavy-Duty Pallet Racking Systems
Factory-direct engineered pallet storage units customized for high-density logistics, cold storage, and automated material handling environments.

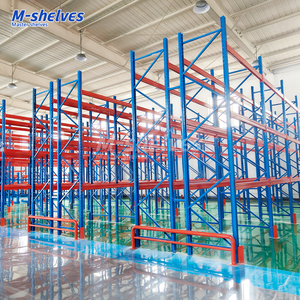

Warehouse Shelves Pallet Racking System Storage Heavy Duty Shelving Rack
Get a Quote

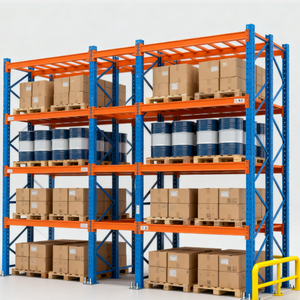

Factory-Direct Wholesale Rates Seismic-Resistant Pallet Rack Shelving Rack
Get a Quote

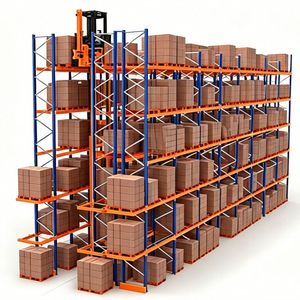

Professional Grade Heavy Duty 5-Layer Steel Powder Coated Storage Racking
Get a Quote
5 Layer Industrial Warehouse Storage Shelving Racks Heavy Duty Adjustable Boltless Rack
Get a Quote
Industrial Pallet Racking System Spliced Steel Drop-Over Deck Panel Storage Rack 2000kg
Get a Quote
Maoyuan Shuttle Cruiser RGV Rail Guided Vehicle Pallet Shuttle Conveyor System 1500kg
Get a Quote
Safe Stable Heavy Duty Push Back Pallet Racking Storage System CE/ISO Certified
Get a Quote
Beam Pallet Rack Q235B Steel Adjustable Heavy Duty Warehouse Storage Rack Custom
Get a QuoteEngineering Leadership: OEM Manufacturing Capability
SolidFort Storage Equipment Co., Ltd. delivers direct factory engineering, rigorous structural compliance, and intelligent warehouse infrastructure from our Xiamen manufacturing base.
Certified Structural Integrity
Engineered directly in alignment with international standards including AS4084-2023 (Australia), RMI ANSI MH16.1 (USA), and FEM 10.2.02 (Europe). Every upright profile undergo strict finite element analysis (FEA) to ensure stability under full load capacities.
30,000㎡ Modern Production Plant
Located in Tongan Park, Xiamen, China, our specialized plant operates continuous automatic roll-forming lines, robotic welding stations, and an eco-friendly automated electrostatic epoxy powder coating line ensuring superior corrosion resistance.
Custom OEM/ODM Engineering
We offer total customization from specific beam profile geometry, drop-over steel deck configurations, dynamic shuttle rail integrations, to bespoke seismic anchoring systems designed for high-risk zones.
The Engineering Mechanics of Next-Generation Intelligent Pallet Storage
Modern intra-logistics demands a transition from static storage racks to dynamic, software-integrated intelligent pallet systems. As global supply chains face tightening real estate availability and escalating labor expenses, the role of custom OEM/ODM manufacturers has expanded beyond structural steel fabrication into complete system integration.
An Intelligent Pallet Storage System pairs heavy-duty steel framing (typically Q235B or Q355B high-tensile structural cold-rolled steel) with automated material movement vehicles such as Radio Shuttle Carts, Rail Guided Vehicles (RGV), and Automated Storage and Retrieval Systems (AS/RS) stacker cranes.
Key Structural Engineering Metrics:
- High Tensile Steel Yield Strength: Utilizing Q355B structural steel for upright columns provides up to 355 MPa of yield strength, allowing thinner profile gauges while maintaining extreme stiffness and resistance to forklift dynamic impact.
- Deflection Limit Compliance: According to FEM 10.2.02 regulations, beam deflection under maximum working uniform distributed load (UDL) must not exceed L/200 (where L is the clear span length of the horizontal beam).
- Torsion & Seismic Bracing: Specialized diagonal and horizontal bracing patterns joined via high-grade 8.8 structural bolts absorb lateral sway, keeping racking columns stable during seismic events or sudden automated vehicle braking.
By partnering directly with SolidFort as an OEM source, enterprise buyers secure direct CAD layout consultations, structural calculation reports (LARC drawings), and custom component fabrication tailored precisely to non-standard pallet geometries (GMA, Euro 1200x800mm, Industrial 1200x1000mm, or customized heavy metal skids up to 4,500 kg per level).
Future Procurement Trends in Intelligent Storage (2025–2030)
Discover how global logistics managers and industrial procurement teams are reshaping their warehouse assets for maximal volumetric density and automation compatibility.
1. Shift from Selective Racking to Semi-Automated Radio Shuttle Systems
Global warehouse operators are rapidly replacing traditional single-deep selective racking with high-density Radio Shuttle systems. Shuttle systems maximize warehouse cubic volume by up to 80-85% compared to 40-45% in selective systems. The reduction of internal forklift working aisles reduces warehouse footprints, minimizes structural impact risks, and dramatically cuts operating times.
2. Cold Chain Specific Galvanized & Low-Temperature Coatings
With the explosive growth of frozen food logistics and pharmaceutical cold chains, pallet storage systems must function reliably down to -30°C. Cold-room intelligent systems require specialized low-temperature lithium-iron-phosphate (LiFePO4) shuttle batteries, anti-condensation sensor housings, and hot-dip galvanized or multi-layer zinc-rich powder coating finishes to prevent rust and material embrittlement.
3. Integration of IoT, WMS APIs, and Automated Vehicle Tracking (RGV/AGV)
Future intelligent storage equipment is no longer isolated steel. Shuttle carts now feature optical and LiDAR position sensors, communicating real-time inventory counts via Wi-Fi 6 or private 5G mesh networks directly into enterprise Warehouse Management Systems (WMS). Purchasing teams now require suppliers to deliver hardware that easily interfaces with standardized REST APIs or Modbus protocols.
4. Demand for Modular OEM Design with Scalable Expansion Capabilities
Modern distribution facilities require structural modularity. Procurement managers favor pallet rack manufacturers who utilize standardized upright hole pitches (such as 50mm, 75mm, or 76.2mm teardrop patterns) that allow rapid height adjustments, easy beam relocation, and modular attachment of drop-over wire decks, steel shelves, or automated shuttle rails as SKU volumes change.
Technical System Selection Matrix
Compare core parameters of primary warehouse racking technologies to inform your enterprise procurement strategy.
| Racking System Type | Storage Density | SKU Selectivity | Max Load / Level | Automated Integration | Ideal Industry Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | Standard (40-50%) | 100% Direct Access | 1,000 – 4,500 kg | Manual / Reach Truck | E-Commerce, 3PL, FMCG Distribution |
| Drive-In / Drive-Thru | High (70-80%) | Low (LIFO / FIFO) | 1,000 – 2,000 kg | Forklift Drive-Through | Cold Storage, Bulk Homogeneous Goods |
| Radio Shuttle System | Very High (80-85%) | Medium (Batch FIFO/LIFO) | 1,500 – 2,500 kg | Semi-Automated Shuttle Cart | Beverage, Cold Chain, High-Volume SKU |
| Push Back Racking | High (65-75%) | Medium (LIFO per lane) | 1,000 – 2,000 kg | Gravity Nested Carts | Medium Turnover, 2-5 Pallets Deep |
| Automated AS/RS Racking | Maximum (85-95%) | 100% Automated | 500 – 3,000 kg | Fully Automated Stacker Crane | Automotive, High-Bay Smart Logistics |
Frequently Asked Procurement & Engineering Questions
Detailed technical answers from SolidFort's engineering department addressing key buyer concerns during system evaluation and overseas sourcing.
What does pallet racking cost per pallet position in an OEM order?
Pricing varies based on raw steel market rates, surface finishing (powder coating vs. hot-dip galvanizing), and structural seismic requirements. Standard selective pallet racking typically averages USD 50–100 per pallet position. High-density semi-automated systems like Radio Shuttle or Push Back racking range from USD 100–250 per position (excluding dynamic automation carts). OEM factory-direct sourcing eliminates middleman markups, yielding substantial savings on large-scale logistics projects.
Do pallet rack columns strictly require slab anchoring under ANSI/RMI MH16.1 and AS4084?
Yes. Under all major structural codes including RMI (ANSI MH16.1), AS4084-2023, and FEM 10.2.02, every single rack column baseplate must be securely anchored to the concrete floor slab with tested expansion or chemical anchors. Anchoring resists overturning moments, prevents floor displacement caused by forklift impact, and ensures seismic stability. Minimum anchor embedment depth and bolt diameter must be validated by a structural engineer based on slab strength (e.g., C25/30 concrete grade).
How is the overall safe load capacity of a pallet rack frame calculated?
Frame capacity is non-linear and depends heavily on two key metrics: Beam Uniformly Distributed Load (UDL) and Maximum Unbraced Vertical Beam Spacing. As vertical beam clearance increases, the column buckling resistance decreases. Never estimate frame capacity—SolidFort provides official Load Application and Rack Configuration (LARC) drawings and structural load plaques detailing specific load capacities for every installation.
What steel raw materials are utilized in SolidFort racking systems?
We primarily utilize high-grade prime cold-rolled steel coils matching Q235B and Q355B structural steel standards (equivalent to ASTM A36 and ASTM A572 Grade 50). Raw materials undergo chemical composition checks and tensile strength testing before cold roll-forming to ensure long-term load-bearing safety.
How are intelligent Radio Shuttle carts integrated into racking systems?
Radio Shuttle carts run on specialized cold-formed galvanized guide rails mounted within high-density racking channels. A standard forklift places the battery-powered shuttle onto the designated channel rail, and the operator uses a wireless remote or tablet interface to send picking or loading commands. The shuttle lifts the pallet using hydraulic or electro-mechanical actuators and carries it along the channel autonomously.
What protection measures prevent rack damage during warehouse forklift operation?
To safeguard structural integrity, we supply heavy-duty accessories including L-shaped or U-shaped steel column protectors, heavy-gauge row end guards, frame reinforcement sleeves, and guide rails for narrow aisle forklifts. Adding wire mesh decking or steel drop-over panels further prevents loose cartons or damaged pallets from falling through beam levels.
What are standard production lead times and global delivery arrangements?
Standard pallet rack orders typically complete production within 10 to 15 days at our Xiamen plant. Large-scale engineered projects (e.g., multi-tier mezzanines or automated AS/RS racking) require roughly 30 days. We support flexible international trade terms including FOB, CIF, CFR, and DDP (Delivered Duty Paid), complete with container packing optimization to reduce freight costs.
What warranty and quality certifications support SolidFort export products?
All SolidFort storage solutions are manufactured under an ISO 9001 certified quality control framework. Products carry CE documentation and structural compliance certifications for Australian (AS4084), American (RMI), and European (FEM) markets, backed by a comprehensive 3-to-10 year structural warranty depending on product category and operating environment.
Optimize Your Storage Infrastructure Today
Connect with SolidFort’s senior engineering team for free CAD warehouse layout designs, structural load calculations, and competitive factory-direct OEM quotes within 24 hours.
