Featured Industrial Pallet Racking & Systems
Precision-engineered cold-rolled steel racking designed for dynamic warehouse throughput, heavy load distribution, and maximum cubic space efficiency.

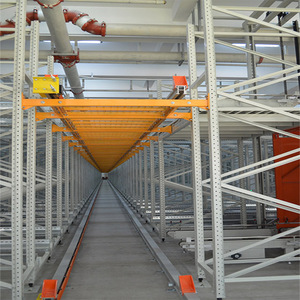

Radio Shuttle Warehouse Pallet Racking System
Automated semi-integrated shuttle system with heavy-duty anti-corrosion coating for cold storage and ultra-dense pallet storage.
Ventilated Wire Mesh Deck Heavy-Duty Pallet Rack
5-Layer 2000kg load capacity damp-proof pallet racking with galvanized flared wire mesh decking for optimized fire sprinkler penetration.

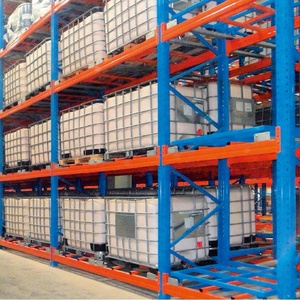

Custom 5-Deep Push Back Pallet Racking System
High-capacity nested cart system designed for multiple-variety bulk goods, offering LIFO access with seamless gravity-fed operation.

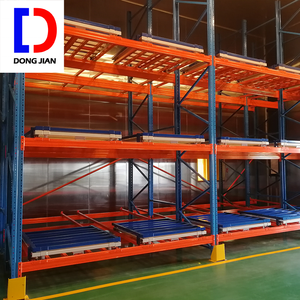

Heavy-Duty DJ Push-In Warehouse Storage Racking
Structural steel push-in storage solution configured for rapid loading, maximum beam stability, and reduction of forklift impact zones.
CE Certified Multi-Layer Heavy Duty Stacking Racks
Versatile garage and commercial warehouse modular stacking shelves constructed with high-yield strength structural upright frames.

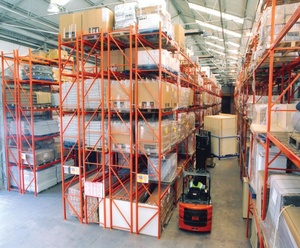

High-Density Double Deep Pallet Racking System
Optimizes floor footprint by pairing rack rows back-to-back, designed specifically for pantograph reach truck forklift operations.

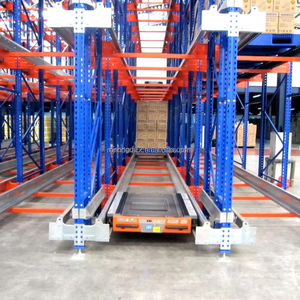

Automated 2-Way Radio Shuttle Metal Storage Rack
OEM customizable automated pallet shuttle matrix featuring lithium-powered radio carts and dynamic inventory control programming.
Roll-Formed Cantilever Rack (1500kg/Arm Capacity)
CE-certified 5-layer heavy duty structural cantilever system with powder coating for long pipes, lumber, and raw metal profile storage.
Modern supply chain logisticians face unprecedented pressure to maximize volumetric utilization while maintaining stringent safety factors and high material throughput. As a premier OEM/ODM warehouse pallet storage system manufacturer and supplier operating a 30,000㎡ state-of-the-art facility in Xiamen, China, SolidFort Storage Equipment bridges the critical gap between raw steel manufacturing and site-specific structural design.
Our OEM/ODM capabilities extend far beyond simple dimension alterations. We engineering-tailor the load-bearing profiles using cold-rolled high-tensile steel grades (Q235B and Q355B equivalent to ASTM A1011 Grade 50), factoring in yield stress limits, dynamic deflection ratios (L/200 standard compliance), and local seismic acceleration coefficients. Every racking system supplied undergoes rigorous Finite Element Analysis (FEA) to ensure structural integrity across varied operational ambient temperatures, ranging from deep-freeze cold storage (-30°C) to heavy industrial assembly floors.
Information Gain Engineering Note: Cold-rolled Q355B steel provides up to 35% higher yield strength over standard Q235 steel, allowing thinner profile gauges without compromising upright frame bucket capacities. This translates directly to lower freight weights and improved total cost of ownership (TCO) for international buyers.
Custom CAD & LARC Engineering
We provide initial CAD layouts, load plaques, and Load Application & Rack Configuration (LARC) drawings within 24–48 hours, fully tailored to your specific forklift turning radius and slab load limits.
Global Standards Compliance
Designed and verified in full accordance with Australian Standard AS4084-2012, RMI (ANSI MH16.1), FEM 10.2.02, and ISO 9001 certified quality control, ensuring complete site audit approval.
Automated Production Lines
Equipped with 16 continuous cold roll-forming lines, automated robotic welding stations, and a 220-meter continuous electrostatic powder coating line achieving 60–80 micron film thickness.
Pallet Storage System Technical Comparison
Select the optimal structural configuration based on storage density, SKU variety, throughput requirements, and forklift compatibility.
| Racking System Type | Selectivity | Space Utilization | Inventory Access Flow | Typical Load Capacity | Forklift Compatibility |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct | 35% - 40% | FIFO (First-In, First-Out) | 1,000kg - 4,500kg / Pair | Standard Counterbalance, Reach Truck |
| Double Deep Pallet Racking | 50% Direct | 50% - 60% | LIFO / FILO | 1,000kg - 3,200kg / Pair | Deep-Reach Pantograph Forklift |
| Drive-In / Drive-Thru | 20% - 30% | 65% - 80% | LIFO (Drive-In) / FIFO (Drive-Thru) | 1,500kg / Pallet Position | Narrow-Frame Counterbalance Truck |
| Radio Shuttle Racking | 30% - 40% | 80% - 85% | Flexible FIFO or LIFO | 1,500kg - 2,000kg / Pallet | Standard Forklift + Automated Shuttle |
| Push Back Racking (Cart) | 25% - 50% | 60% - 70% | LIFO (Last-In, First-Out) | 1,500kg / Cart Level | Standard Counterbalance Truck |
| Heavy-Duty Cantilever | 100% (Long Loads) | Custom Dynamic | Direct Arm Clearance Access | 500kg - 1,800kg / Arm | Side Loader, Multi-Directional Reach |
Future Procurement Trends in Warehouse Storage (2026–2030)
How global enterprise procurement managers are re-engineering supply chain infrastructure for automation, resilience, and sustainability.
1. High-Density Automation Integration (AS/RS & Shuttle)
Procurement is rapidly shifting away from static, labor-intensive racking toward shuttle-compatible hybrid systems. Modern automated 2-way and 4-way radio shuttle racking modules reduce reliance on manual forklift labor, double pallet storage density within existing real estate footprints, and lower energy consumption in temperature-controlled cold chain facilities.
2. Stringent Seismic & Structural Safety Certification
Global logistics hubs in North America, Europe, and Australia increasingly demand verified engineering calculations for seismic zone compliance (such as AS4084 and RMI ANSI MH16.1 standards). Enterprise buyers require OEM partners to provide structural finite element analysis and certificate of compliance before shipment.
3. Modular Re-configurability and Scalability
E-commerce SKU volatility requires pallet systems to adapt rapidly. Buyers favor teardrop or teardrop-compatible beam connectors with 50mm / 75mm pitch adjustments, allowing vertical shelf elevation tweaks without requiring structural frame disassembly or heavy site welding.
4. Low-VOC & Green Surface Protection
Environmental compliance has become a key audit metric. Top-tier suppliers use lead-free, non-toxic epoxy-polyester powder coatings applied through closed-loop recycling booths, ensuring maximum scratch resistance, zero off-gassing, and long-term rust prevention in damp environments.
The structural steel storage equipment market is undergoing a significant transformation driven by material science advancements and IoT integration. Key technical development trends include:
- Cold-Formed High Yield Profiles: Transitioning from standard hot-rolled structural shapes to cold-formed high-strength profile geometries that provide optimized moment of inertia while lowering total steel mass.
- Integrated Rack-Supported Building Structures (Clad Rack): Growing adoption of self-supporting rack buildings where upright columns serve as structural walls and roof supports, saving up to 25% in building construction overheads.
- Advanced Impact & Guard Protection: Integration of dynamic polymer shock-absorbing column protectors and reinforced heavy-gauge baseplates to prevent structural frame fatigue caused by forklift collisions.
- Hybrid Storage Platforms: Combining heavy-duty selective bottom levels with upper structural mezzanine floors or automated carton flow rack systems to optimize multi-level fulfillment centers.
Pallet Storage System Sourcing & Technical FAQ
Expert answers from SolidFort's chief structural engineering team regarding capacity, anchoring, international compliance, and lead times.
Racking costs vary based on steel raw material market indexes, system complexity, and surface finish. Standard selective pallet racking typically averages USD $45–$90 per pallet position. High-density systems such as push-back racking or drive-in racking range between USD $90–$200 per position, while fully automated radio shuttle systems range from USD $180–$350 per position. These estimates cover hardware materials; engineering fees, freight, and anchoring hardware depend on destination specifications.
Every single pallet rack upright column baseplate must be anchored directly into the concrete floor slab with engineered mechanical wedge anchors or chemical anchor bolts. Anchoring prevents horizontal shifting during pallet loading, stabilizes upright frames against rotational shear forces, ensures overturning moment stability, and maintains structural load capacity when subjected to minor equipment impact or seismic events.
Beam load capacity is determined on the basis of a Uniformly Distributed Load (UDL) acting on a pair of horizontal shelf beams, designed under a maximum allowable deflection limit of Deflection = Beam Length (L) / 200. For example, a 2700mm (9ft) beam pair designed for 2,500kg total loading must not deflect vertically by more than 13.5mm under full static load. Frame buckling capacity also decreases as the vertical distance between beam levels increases.
For standard North American 40" x 48" GMA pallets, the universal upright frame depth is 42 inches (1067mm), providing a mandatory 3-inch pallet overhang front and rear for forklift beam seating visibility. Standard beam length is 96 inches (2438mm) or 108 inches (2743mm) to house two pallets side-by-side. For standard Euro pallets (1200mm x 800mm), frames are typically sized at 1100mm depth with 2700mm beam spans.
To prepare an accurate engineering quote and free CAD layout, supply the following: (1) Warehouse architectural drawings showing clear height to lower roof trusses, column grid, and door locations; (2) Pallet dimensions (Length x Width x Height including product); (3) Maximum gross weight per loaded pallet; (4) Forklift truck specifications (minimum aisle turning radius, maximum lift height, mast collapsed height); and (5) Ambient operating temperature and local building code standards.
Standard orders (selective, wire mesh deck, cantilever racks) are manufactured and packed within 10 to 15 business days. Complex automated shuttle systems or large project orders (over 5,000 pallet positions) typically require 25 to 35 days. We support FOB Xiamen, CIF, CFR, and door-to-door DDP shipping terms with custom container loading diagrams to minimize ocean shipping volume.
Need an OEM/ODM Structural Racking Solution?
Get direct access to our senior structural engineering team. Receive custom CAD layouts, certified weight calculation sheets, and competitive factory pricing within 24 hours.
