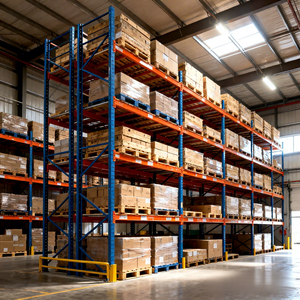

High-Rise Heavy Duty Beam Racking 10-15m Tall Steel Storage Shelves for Large Logistics Center Palletized Cargo Stacking
Get Catalog
High Performance Heavy Duty Logistics Shelves Stocking Warehouse Storage Rack Pallet Rack for Heavy-Duty Reticulated Shelf
Get Catalog
Jracking CE Certified Automated Four Way Radio Shuttle River-type Pallet Racking System For Industrial Warehouse
Get Catalog
Outdoor Pallet Racking Metal Storage Organizer Rack For Warehouse Store Factory 1000KG 2000KG 3000KG Pounds Tons
Get CatalogThe Engineering Economics of Gravity Flow (Pallet Flow) Systems
Gravity Flow Pallet Racking (also known as Pallet Flow Racking) relies on dynamic pitch tracks, heavy-duty roller beds, and kinetic speed controllers to utilize natural gravity for automatic pallet rotation.
1. Technical Fundamentals & Kinematics of Pallet Flow Racking
Gravity flow pallet racking operates on an inclined pitch—typically angled between 3.5% to 4.5% (roughly 3/8" to 1/2" per foot). Loaded pallets are introduced from the elevated loading aisle (rear) and glide down heavy-duty steel rollers toward the discharge aisle (front) under controlled gravitational force. This mechanical setup inherently enforces First-In, First-Out (FIFO) stock rotation, making it the premier choice for cold storage, food & beverage logistics, pharmaceutical distribution, and high-turnover FMCG operations.
Unlike static selective pallet racking, gravity flow systems eliminate internal working aisles. By consolidating travel lanes into designated loading and picking zones, warehouse managers achieve up to 85% footprint utilization while dramatically minimizing collision hazards between material handling equipment (MHE) and structural rack uprights.
Core Kinematic Components: Modern gravity flow systems incorporate Centrifugal Brake Rollers positioned at calculated intervals along the track to regulate terminal velocity (keeping pallet speed below 0.3 m/s), alongside Pallet Separator Mechanisms at the discharge end that relieve line pressure, allowing forklifts to lift pallets cleanly without binding.
Dynamic Engineering Comparison Matrix
Selecting the optimal high-density storage strategy requires balancing capital expenditure (CapEx), SKU diversity, throughput velocity, and inventory management protocols:
| Racking Architecture | Inventory Flow | Density Index | Direct SKU Access | MHE Utilization Risk | CapEx Level (per position) |
|---|---|---|---|---|---|
| Gravity Flow (Pallet Flow) | FIFO (First-In, First-Out) | Very High (80-85%) | Low (1 SKU per lane) | Minimal (Aisle separation) | USD $120 - $260 |
| Selective Pallet Racking | FIFO / LIFO Optional | Low (35-40%) | 100% (Instant) | Moderate to High | USD $50 - $100 |
| Drive-In / Drive-Thru | LIFO (FIFO with Drive-Thru) | High (75-80%) | Very Low | High (Forklifts enter structure) | USD $90 - $160 |
| Automated Radio Shuttle | Flexible (FIFO & LIFO) | Maximum (85-90%) | Medium (Channel based) | Zero (Robot handles depth) | USD $180 - $350 |
| Push Back Racking | LIFO (Last-In, First-Out) | High (65-75%) | Medium (2-6 deep) | Low (Front load only) | USD $110 - $220 |
2. Top 10 Gravity Flow Pallet Racking Factories & Exporters
To evaluate international suppliers, our engineering panel analyzed manufacturing floor space, structural compliance (RMI, AS4084, FEM 10.2.02), steel material grades (Q235B vs. Q355B structural steel), roller bearing longevity, export track records, and custom CAD engineering capabilities.
SolidFort Storage Equipment Co., Ltd.
A premier OEM/ODM manufacturer specializing in engineered gravity flow, radio shuttle, and heavy-duty selective systems. SolidFort excels in high-tolerance roll-forming, automated robot welding, and eco-certified powder coating. Engineered directly to AS4084-2023 and ANSI/RMI MH16.1 specifications.
- Main Standards: AS4084, RMI, FEM 10.2.02, ISO9001
- Lead Time: 10–15 Days (Standard Orders)
- Export Footprint: 53+ Countries (US, AU, EU, SEA)
Interroll Group
Global leader in internal logistics components. Interroll manufactures high-precision flow modules, speed controllers, and magnetic dampening rollers designed for integration into heavy-duty storage structures worldwide.
- Specialization: Roller Track & Speed Control Systems
- Key Feature: Time-tested magnetic brake rollers
- Market Focus: Global Integrators & Automation Hubs
SSI Schaefer
A global powerhouse in intralogistics. SSI Schaefer provides fully integrated pallet flow solutions featuring custom-engineered entry guides, safety accessories, and automated storage integration for complex cold chain hubs.
- Compliance: FEM, EN Standards, ISO9001
- Strengths: Turnkey automated warehouse integration
- Scope: Enterprise Distribution Centers
Stow Group
One of Europe’s leading racking manufacturers. Stow produces heavy-duty dynamic gravity flow racks designed for heavy unit loads, incorporating proprietary roller bed designs and robust upright frames.
- Certification: FEM 10.2.02, EN 15512
- Product Scope: Pallet Flow, Silo Racking, Mobile Racks
- Reach: Pan-European & Global Distribution
Mecalux, S.A.
Operating across Europe and the Americas, Mecalux produces highly customizable live storage systems for pallets. Features robust brake systems and pick-off separators tailored for high-velocity FMCG warehouses.
- Footprint: Global Direct Engineering Sales
- Core Tech: Live Storage & Warehouse Management Software
- Target Sectors: Logistics 3PL, Food & Beverage
Dexion (Constructor Group)
With decades of structural engineering legacy, Dexion manufactures precision-engineered gravity pallet flow racking tailored to strict European safety and structural deflection norms.
- Standards: RAL-RG 614, FEM 10.2.02
- Specialties: Custom Structural Beams & Uprights
- Service: Full Lifecycle Structural Auditing
Jracking Group
Specializes in export-grade heavy-duty storage racking systems. Offers customizable roll-formed profiles and gravity flow tracks certified to international quality standards for overseas distributors.
- Certifications: CE, ISO9001, AS4084 Compliant
- Capacity: High Volume Export Logistics
- Key Focus: Heavy-duty pallet racking components
Jungheinrich AG
A world leader in warehousing equipment. Jungheinrich provides comprehensive gravity flow storage setups engineered to work seamlessly alongside their automated reach trucks and VNA equipment.
- Focus: Forklift-Rack Mechanical Integration
- Quality Level: Premium European Engineering
- Reach: Global Subsidiary Network
Frazier Industrial Company
Renowned across North America for structural hot-rolled steel channel racking. Frazier’s gravity flow racking utilizes heavy-duty structural steel shapes capable of enduring severe forklift impacts.
- Material: 100% Hot-Rolled Structural Steel Channels
- Standards: ANSI / RMI MH16.1 Certified
- Market: Americas Heavy Industrial Market
Advance Storage Products
Major North American provider of high-density dynamic racking solutions. Produces sturdy pallet flow systems tailored for high-volume grocery, beverage, and manufacturing distribution centers.
- Specialty: Pallet Flow & Pushback Systems
- Design Basis: RMI Seismic Compliant Engineering
- Targeting: North American Logistics Networks
3. Global Procurement Trends & Technical Advancements (2026–2030)
Industrial storage procurement is undergoing a paradigm shift driven by automated warehouse integration, sub-zero cold chain expansion, and rigorous workplace safety regulations. B2B buyers must account for the following technical trends when drafting RFP specifications:
A. Sub-Zero Cold Chain Optimization
With the global rise in frozen food and pharmaceutical logistics, gravity flow racks installed in -25°C to -30°C environments require specialized low-temperature lubricants, synthetic roller bearings, and anti-freeze brake assemblies. Standard bearings can freeze or lock up due to moisture condensation, causing pallet binding. Modern exporters now utilize stainless steel roller shafts and sealed low-temp bearings as standard cold-storage specs.
B. Magnetic Non-Contact Speed Regulation
Traditional friction-based brake rollers wear out over millions of cycles and produce micro-particulates undesirable in cleanroom or food-grade environments. The industry is rapidly adopting Magnetic Eddy-Current Speed Controllers. These non-contact braking mechanisms automatically adjust resistance proportionally to pallet weight without mechanical friction, drastically extending operational life and eliminating maintenance overhead.
C. Pallet Quality Standardization & Hybrid Tracks
Gravity flow performance relies heavily on bottom-board pallet integrity. Broken bottom runner boards or sagging plastic pallets can stall flow lanes. Procurement teams are moving toward multi-track configurations (such as 3-track or 4-track wheel beds with full-width steel entry rollers) to accommodate variable pallet qualities (GMA, Euro 1200x800mm, CHEP, and plastic pallets) within the same lane system.
Why Direct Sourcing from SolidFort Elevates Your ROI
As a direct-from-factory pallet racking manufacturer in Xiamen, China, SolidFort bridges the gap between high-capacity structural engineering and competitive factory-direct pricing.
Rapid 10–15 Day Production Lead Time
Operating high-speed continuous roll-forming lines and raw material steel coils in stock, standard racking orders ship within 10 to 15 days, while engineered projects complete in ~30 days.
Free Structural FEA & CAD Layouts
Every project undergoes Finite Element Analysis (FEA) testing and structural calculation verification against local building codes, slab conditions, seismic zones, and forklift specifications.
AS4084, RMI & FEM Compliance
All upright frames, box beams, step beams, and gravity accessories are manufactured under ISO9001 certified quality control, fully compliant with Australian AS4084-2023 and US RMI ANSI MH16.1 guidelines.
Full Container Export Packing
Custom steel frame bundling and protective plastic wrapping ensure zero transit damage during sea freight. Full container loading (FCL) layouts maximize freight cubic capacity.
Frequently Asked Questions (Procurement FAQ)
Engineering and budgetary answers to common buyer queries regarding pallet racking installation, compliance, and structural calculation.
1. Beam Load Capacity: The uniformly distributed load (UDL) a pair of horizontal beams can safely carry without exceeding maximum deflection limits (typically L/180).
2. Upright Frame Capacity: The maximum vertical load an upright frame can support. Crucially, frame capacity decreases as the vertical distance between beam levels (unsupported span) increases.
Engineers utilize Load Application and Rack Configuration (LARC) drawings and plaques to mandate exact load capacities per shelf level.
