Modern warehouse logistics require a precise balance between high-density space utilization, structural integrity under dynamic forklift stress, and mandatory fire protection safety codes. Integrating Heavy-Duty Pallet Racking Systems with Galvanized Wire Decking has become the world standard across 3PL distribution hubs, cold storage facilities, and industrial manufacturing plants.
This technical report evaluates the top global factories and OEM suppliers based on structural steel yields (Q235B vs. Q355B), automated roll-forming precision, surface finish endurance (powder coating vs. hot-dip galvanizing), compliance with RMI ANSI MH16.1, AS4084-2023, and FEM 10.2.02 standards, as well as factory-direct value engineering.
Top 10 Global Pallet Racking & Wire Decking Manufacturers
Selecting an enterprise racking manufacturer requires evaluating steel raw material traceability, structural testing reports, deck channel load capacities (Step vs. Flared Channels), and global fulfillment capabilities. Below is an engineering benchmark of the leading global suppliers.
1. SolidFort Storage Equipment Co., Ltd.
Rank #1 OEMSolidFort is an industry-leading direct factory manufacturer specializing in engineering-grade selective pallet racking, drive-in systems, radio shuttle racking, and heavy-duty wire mesh decking. Operating fully automated roll-forming, robotic welding, and continuous electrostatic powder coat lines, SolidFort delivers AS4084, RMI, and FEM-compliant systems with a 10–15 day standard lead time.
2. Interlake Mecalux
Global Tier 1A dominant manufacturer in North America and Europe, Interlake Mecalux specializes in teardrop selective pallet racks and automated storage systems. Known for versatile beam attachments and wide distributor networks.
3. SSI SCHAEFER
Automation LeaderRenowned for high-precision German engineering, SSI SCHAEFER produces heavy-duty racking, mobile shuttle racks, and specialized wire mesh shelving units tailored for complex intralogistics ecosystems.
4. Frazier Industrial Company
Structural SteelFrazier specializes exclusively in structural steel channel racking rather than roll-formed steel. Their heavy-duty pallet racks offer extreme impact resistance against forklift abuse in demanding logistics operations.
5. Dexion
APAC / EMEA LeaderDexion provides tailored industrial storage systems across Asia-Pacific and Europe. Their key-lock slotted pallet rack profiles are widely recognized for seismic structural safety and compliance with AS4084 standards.
6. Ridg-U-Rak, Inc.
North America Tier 1One of North America's largest pallet rack producers, manufacturing over 100 million pounds of rack structural steel annually. Produces hooked-in, slotted, and structural pallet racking systems.
7. Stow Group
European SpecialistStow is a prominent European manufacturer of racking systems. Operating multiple automated production facilities across Europe, they specialize in high-bay pallet racking and automated shuttle racking systems.
8. Jungheinrich AG
System IntegratorIntegrating materials handling equipment with custom steel racking, Jungheinrich manufactures narrow-aisle (VNA) selective pallet racking, multi-tier mezzanines, and wire mesh decking setups.
9. Unarco Material Handling
US ManufacturerUnarco offers structural steel and roll-formed pallet racking systems, including T-Bolt, interchangeable teardrop, and push-back rack configurations engineered for retail distribution centers.
10. Advance Storage Products
Pushback SpecialistAdvance Storage Products produces system-engineered structural selective racks and push-back systems. Known for heavy-duty structural steel frame designs suited for food storage.
Featured Heavy-Duty Pallet Racking & Decking Solutions
Select from factory-engineered roll-formed steel racks, seismic double-deep configurations, smart electric mobile storage, and NFPA-compliant galvanized wire decking accessories.
Heavy-Duty Steel Pallet Rack, Powder-Coated Finish, Adjustable Size, Customizable Load-bearing Panels & Colors
Inquire Now
Industrial Heavy Duty High Efficiency Warehouse Electric Mobile Storage Shelf Automatic Mobile Racking System Pallet Rack
Inquire Now

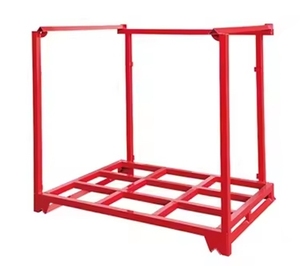

High Bearing Various Size Freestanding Steel Heavy Duty Storage Smart Rack Pallet Container Stillage Warehouse/Workhouse 1000kg
Inquire Now
Certificate Heavy Duty Metal Storage Rack Mobile Racking Adjustable Pallet Racking System 1300KG 1400KG 1500KG Pounds Tons
Inquire Now
Maxrac Pallet Racking System Seismic Design
Inquire Now
Double Deep Pallet Racking High Capacity Storage System Suitable for Reach Truck Forklift Optimize Warehouse Space Utilization
Inquire Now
Mezzanine Beam Pallet Rack Steel Structure Mezzanine Floor Warehouse Storage Heavy Duty Loft Platform Mezzanine Racking
Inquire Now
Industrial Factory Price Heavy Duty Beam Rack Roll Formed Steel Storage System for Pallet Loading
Inquire NowWhy High-Volume Importers Partner with SolidFort
Based in Xiamen, China, SolidFort operates a state-of-the-art 30,000㎡ production facility engineered specifically for B2B global export. We bridges the cost advantages of direct manufacturing with structural engineering rigor compliant with western standards.
AS4084 & ANSI/RMI Structural Standard
Every rack frame and beam level is engineered according to AS4084-2023 (Australia) and ANSI MH16.1 (USA) codes. We generate full LARC (Load Application & Rack Configuration) drawings before steel cutting.
Direct Factory Pricing & 15-Day Lead Time
Eliminating intermediary markup, SolidFort maintains continuous raw steel coil inventory (Q235B & Q355B). Standard selective racks ship in 10 to 15 days, with container loading plans included.
Fully Integrated Wire Mesh Decking Production
We manufacture step-beam compatible wire mesh decks with welded U-channel supports, electro-galvanized or hot-dip galvanized finishes. Tailored to match 42" or 48" upright frame depths perfectly.
Free 3D CAD Warehouse Simulation
Our engineering department provides zero-cost floorplan CAD layouts, pallet position calculations, VNA turning radius verification, and slab anchor point load assessments.
Technical Comparison: Wire Decking Support Channels
Wire mesh decking performance depends heavily on the geometry of the reinforcing cross-channels resting on pallet rack step beams. Select the correct profile to avoid point-load structural failure:
| Channel Profile | Beam Fitment | Standard Capacity (UDL) | NFPA 13 Fire Sprinkler Open Ratio | Recommended Industry Application |
|---|---|---|---|---|
| Universal Step Channel (U-Style) | Standard 1-5/8" Step Beams | 2,000 lbs – 3,500 lbs (900 – 1600 kg) | > 72% Open Area | General 3PL Warehousing, Retail Distribution |
| Flared Channel (Universal Flange) | Box Beams, Structural Channel & Step Beams | 1,500 lbs – 2,500 lbs (700 – 1150 kg) | > 70% Open Area | Versatile Warehousing with Mixed Beam Styles |
| Inverted U-Channel | Clean Step Beams (Food & Pharma) | 2,500 lbs – 4,000 lbs (1100 – 1800 kg) | > 75% Open Area | Cold Storage, Food & Beverage (Prevents Dust Accumulation) |
| Heavy-Duty Drop-In Solid Sheet | Step & Structural Beams | 5,000+ lbs (2300+ kg) | 0% (Requires Fire Baffles) | Heavy Machinery Tooling, Small Item Hand-Picking |
Future Procurement Trends in Pallet Racking & Wire Decking (2026–2035)
Strategic buyers must align facility procurement with long-term technology and sustainability shifts. Material handling infrastructure is evolving rapidly toward automated warehouse integration and higher yield steel chemistries.
1. High-Tensile Micro-Alloyed Steel (Q355B & High Yield Cold-Rolled)
Global manufacturers are shifting from standard Q235 steel to micro-alloyed Q355B steel for upright columns and box beams. Higher yield strength (Fy=355 MPa) reduces overall steel tare weight while maintaining or expanding load-bearing limits. This optimization cuts international ocean freight tariffs while meeting stringent seismic deflection tolerances (L/240 ratio).
2. AMRs & Automated Shuttle Decking Systems
As Autonomous Mobile Robots (AMRs) and Radio Shuttle carts replace traditional counterbalanced forklifts, wire decking must feature tighter wire grid dimensions (e.g., 2" x 2" or 1" x 4") and robotic location notch guides. Decks are customized with recessed positioning plates to ensure automated shuttle guidance sensors are not disrupted.
3. Strict NFPA 13 Fire Sprinkler Compliance Standards
Insurance underwriters and municipal fire marshals are enforcing stricter open-grid ratios for rack decking. Standard solid wood panels or solid steel decks are being widely phased out in favor of electro-galvanized wire mesh decking that guarantees greater than 70% water penetration clearance for Early Suppression Fast Response (ESFR) ceiling sprinklers.
4. Eco-Friendly Zero-VOC Powder Coating & Eco-Galvanizing
ESG compliance is dictating supply chain purchasing. Premier factories are replacing traditional solvent-borne paints with thermosetting epoxy-polyester powder coats cured in zero-VOC automated ovens. Electro-galvanized mesh coatings now feature trivalent chromium passivation to eliminate toxic heavy metals while offering 500+ hours of salt-spray corrosion resistance.
Next-Generation Technology Trends in Heavy Storage Systems
Beyond material science, technological integration is converting passive storage steel into active operational assets:
Key Technological Innovations:
- Structural IoT Deflection Sensors: Smart load cells embedded inside beam connectors alert warehouse managers via cloud telemetry when a shelf level exceeds the safe 1/240 deflection threshold.
- Robotic-Laser Weld Integrity: Continuous robot-arm MIG welding ensures zero cold-weld joints on wire deck channels and beam connector hooks, eliminating structural fatigue under dynamic loading.
- Seismic Dynamic Energy Dissipators: High-seismic zone installations utilize specialized baseplate damping shims and flexible beam safety locks designed to absorb P-Wave and S-Wave earthquake forces without catastrophic collapse.
Frequently Asked Procurement & Technical Questions (FAQ)
Q: What is the estimated cost of standard selective pallet racking per pallet position?
A: Raw material pricing depends on global steel coil indexes. Standard selective pallet racking generally ranges from USD $50 to $100 per pallet position for materials. High-density systems (such as Radio Shuttle, Drive-In, or Push-Back racking) range between USD $100 and $250 per position. Integrating heavy-duty galvanized wire mesh decking adds approximately USD $12 to $25 per deck depending on gauge and channel count.
Q: Why is wire decking preferred over wood or solid steel panels?
A: Wire decking offers four decisive advantages: First, it satisfies NFPA 13 fire codes by allowing sprinkler water to flow through to lower rack levels. Second, it eliminates dust buildup, improving warehouse hygiene. Third, it prevents loose cartons or damaged wooden pallets from falling through beam levels. Fourth, it provides high uniform load capacities without adding excessive deadweight to upright frames.
Q: Are concrete slab anchor bolts mandatory for all upright frames?
A: Yes. Under ANSI/RMI MH16.1 and AS4084-2023 regulations, every rack column baseplate must be anchored to the reinforced concrete floor slab with engineered wedge anchors or chemical anchors. Anchoring resists vertical uplift forces, prevents lateral shifting during forklift loading, and preserves structural balance under minor impacts.
Q: How is the Uniformly Distributed Load (UDL) capacity calculated for wire decking?
A: UDL capacity assumes the load (such as a standard 40" x 48" GMA wood pallet) is evenly spread over the entire surface of the mesh deck, supported by the steel cross channels resting on the front and rear step beams. Point loads or concentrated foot loads drastically reduce safe capacity. Always verify capacity using the manufacturer's certified engineering tables.
Q: How often should industrial pallet racking and decking undergo formal inspection?
A: According to international standards, racking systems should undergo a formal safety inspection by a certified rack inspector at least once every 12 months. In addition, internal maintenance teams should perform visual weekly checks for damaged upright bases, deflected beams, dislodged safety pins, or bent wire decking channels.
Q: What documentation is required when importing pallet racking from China?
A: Professional manufacturers like SolidFort provide a complete export compliance documentation package, including: 1) Structural Mill Test Certificates (MTC) for steel raw materials, 2) Factory ISO 9001 quality audit reports, 3) 3D CAD LARC installation assembly drawings, 4) CE Compliance Certificates, and 5) Container Packing Lists with optimized volumetric loading schemes.
Plan Your Warehouse Storage Layout with SolidFort Engineers
Receive a free, zero-obligation 3D CAD warehouse layout drawing, structural load calculation report, and factory-direct price quotation within 24 hours.
