Automated Storage & Industrial Racking Systems
Explore certified high-density storage hardware engineered for high throughput, seamless warehouse management software (WMS/WCS) integration, and structural longevity under demanding industrial operational dynamics.

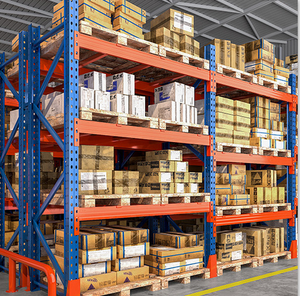

Industrial Heavy Duty Push-Back Pallet Racking System
Engineered with multi-level nested carts, anti-collision upgrades, 30,000kg system load envelope, and heavy-duty wire mesh decking for dense LIFO stock handling.

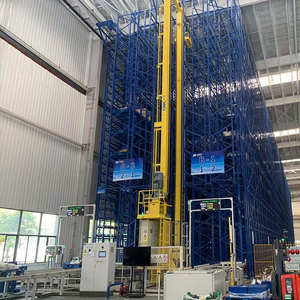

PTERIS Intelligent Stacker Crane Automated Storage Retrieval System (ASRS)
Fully automated high-bay steel structure integrated with high-speed stacker cranes, delivering maximum vertical cube utilization and zero-error inventory retrieval.
Automated Two-Way Radio Shuttle Pallet Racking System
Semi-automated high-density storage platform using wireless radio-controlled shuttles to carry pallets inside deep channels, drastically lowering forklift travel cycles.
Outdoor Heavy-Duty Weatherproof Pallet Racking Metal Storage System
Hot-dip galvanized structural steel racking designed for outdoor factory yards, engineered to handle 1000kg–3000kg per level against extreme corrosion and wind loads.

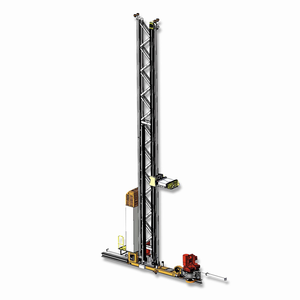

Pteris Miniload Single-Column High-Speed ASRS Racking
Precision-manufactured automated storage system for totes and small cartons, built for ultra-fast order fulfillment, e-commerce distribution, and high-frequency picking.
Electric High-Lift Mast Reach Truck & Warehouse Material Handling Equipment
Precision material handling equipment optimized for narrow-aisle racking operations, featuring dynamic stability control and up to 12.5m high-mast reach capability.
Double-Deep High-Density Pallet Racking Configuration
Dual-row back-to-back configuration storing pallets two-deep, increasing warehouse storage density by 30%–40% compared to standard selective racking setups.
Heavy-Duty Steel Mezzanine Platform & Multi-Tier Rack Structure
Multi-level structural steel flooring integrated with rack supports, doubling or tripling floor area for manual assembly, parts picking, and overhead office space.
Engineering Superior Storage Architecture Since 2016
Operating from a modern 30,000 m² heavy industrial production complex in Tongan District, Xiamen, China, SolidFort Storage Equipment Co., Ltd. stands as a premier factory-direct manufacturer specializing in high-density automated and heavy-duty industrial storage systems. We engineer solutions that transform raw footprint into optimized, high-throughput logistical assets.
Unlike trading intermediaries, our in-house engineering team uses advanced Finite Element Analysis (FEA) to calculate buckling modes, shear stresses, and load distribution matrices tailored to your concrete slab capacity and operational equipment parameters.
- Certified Structural Steel: Manufactured exclusively from Q235B and high-yield Q355B cold-rolled steel profiles for maximum strength-to-weight performance.
- Strict International Rigor: Fully compliant with Australian standard AS4084-2012, American RMI (ANSI MH16.1), European FEM 10.2.02, and ISO 9001 certified manufacturing protocols.
- End-to-End Turnkey Delivery: Free initial 3D CAD layout development, exact LARC (Load Application and Rack Configuration) engineering drawings, automated sample production, and global freight optimization.
Manufacturing Quality Control Metrics
Every rack component undergoes rigorous metallurgical and physical structural testing before container loading:
Warehouse Storage Architecture Selection Matrix
Compare mechanical characteristics, space utilization ratios, inventory access flows, and operational economics across primary industrial rack configurations.
| Racking Architecture | Selectivity (%) | Volume Utilization | Stock Inventory Flow | Optimal Load Profile | Capital Cost Index |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Access | 50% – 60% | FIFO / LIFO | High SKU Variety, Flexible Pallets | Economic (Baseline) |
| Automated Radio Shuttle | High Channel Selectivity | 80% – 88% | FIFO or LIFO Selectable | High Volume Homogeneous SKUs | Moderate – Advanced ROI |
| ASRS Stacker Crane System | 100% Automated Access | 85% – 95% (High-Bay) | Fully Automated (WMS Driven) | High Throughput, 24/7 Operations | Capital Intensive / Ultra High Density |
| Heavy Duty Push-Back Racking | Medium (per Lane) | 70% – 75% | LIFO (Last-In, First-Out) | 2–6 Pallets Deep Medium Rotation | Moderate Structural Cost |
| Drive-In / Drive-Thru Racking | Low (per Channel) | 75% – 85% | LIFO (Drive-In) / FIFO (Drive-Thru) | Bulk Homogeneous, Cold Storage | Economic per Pallet Slot |
| Heavy-Duty Steel Mezzanine | 100% Floor Access | Doubles Floor Footprint | Multi-Tier Manual Access | Carton Picking, Assembly, Bulk Parts | Moderate Floor Area Expansion |
Future Procurement Trends in Automated Storage & Materials Handling
Insights into the technological shift transforming international warehouse purchasing strategies over the next decade.
1. Rapid Shift from Static to Automated Systems
Global labor shortages and escalating land costs are forcing industrial buyers to transition away from traditional static racking. Industrial procurement is shifting heavily toward 4-Way Radio Shuttle channels and automated miniload ASRS, quadrupling vertical pallet storage capacity within existing facility footprints.
2. Cold-Chain Metallurgy Optimization
Cold storage logistics require steel alloys capable of maintaining fracture toughness at temperatures down to -30°C. Modern procurement specifies cold-formed Q355B steel structures with specialized powder coating pre-treatments to prevent micro-cracking and moisture-induced delamination.
3. Modular AGV & AMR Fleet Compatibility
Modern pallet rack configurations are increasingly specified to integrate directly with Autonomous Mobile Robots (AMRs) and automated forklifts. This demands ultra-precise roll-forming tolerances, floor-anchoring grid precision, and recessed bottom beam levels to facilitate seamless robotic under-ride navigation.
Factory-Direct Manufacturing Power & Direct Supply Chain
Eliminate middleman markups while securing custom structural engineering, compliance-verified manufacturing, and guaranteed delivery schedules.
30,000㎡ Modern Production Base
Equipped with automated cold roll-forming lines, robotic continuous welding cells, and multi-stage automatic electrostatic powder coating lines capable of processing thousands of tons of structural steel monthly.
10–15 Day Standard Lead Times
Our strategic coil stock inventory of Q235B and Q355B raw steel allows rapid production cycles for standard selective, drive-in, and shuttle racking orders, cutting standard market wait times in half.
Seismic & FEA Structural Calculations
Every engineered system comes with rigorous structural load application profiles (LARC) detailing beam deflection rates (limited to L/200 under full load) and baseplate anchor stress verifications for local building permits.
Global Compliance & Quality Assurance
Strict adherence to Australia’s AS4084-2012, America’s RMI ANSI MH16.1, and Europe’s FEM standards. Third-party mill test certificates (MTC) and ultrasonic weld inspection reports provided with every shipment.
Full OEM/ODM Customization Capabilities
From unique column section depths and beam connector pin mechanics to custom wire mesh deck drop-in steps and heavy-duty frame protector guards, we fabricate exact specs to match your handling machinery.
Export Mastery Across 53+ Nations
Container-optimized bundle packaging minimizes ocean freight volume. We supply complete installation blueprints, step-by-step video installation guides, and full DDP/CIF/FOB logistics services globally.
Pallet Racking & Automation Sourcing FAQ
Direct structural and procurement responses to fundamental engineering questions raised by international logistics directors and warehouse buyers.
What is the estimated procurement cost per pallet position for industrial racking systems?
Procurement cost varies based on structural steel market prices, rack height, load capacity per pallet, and mechanical complexity:
- Standard Selective Pallet Racking: Averages USD $50 – $100 per pallet slot.
- High-Density Drive-In & Push-Back Racking: Ranges between USD $100 – $180 per slot.
- Automated Two-Way & Four-Way Radio Shuttle Racking: Typically ranges from USD $150 – $250 per slot (inclusive of shuttle equipment).
- Fully Automated ASRS Stacker Crane Systems: Ranges from USD $300 – $600+ per slot depending on height (up to 40 meters), WMS software integration, and throughput speeds.
Why is concrete slab anchoring mandatory under ANSI/RMI MH16.1 and AS4084 standards?
Every vertical rack column must be securely anchored to the concrete floor slab using engineered expansion or adhesive anchors. Floor anchoring prevents column base displacement caused by accidental forklift impacts, resists overturning moments during top-level loading, and ensures structural equilibrium during seismic ground motion. Anchor diameter, embedment depth, and baseplate thickness are calculated based on slab thickness (typically 150mm–250mm minimum) and concrete compressive strength (C25/C30 grade minimum).
How do engineers calculate beam and upright frame load capacities?
Pallet rack load rating involves two independent structural checks:
- Beam Pair Capacity: Calculated as Uniformly Distributed Load (UDL) capacity. Beams are sized to prevent flexural deflection exceeding L/200 (length divided by 200).
- Upright Frame Capacity: Determined by column profile geometry, steel yield strength (Q235B vs Q355B), and crucially, the unbraced vertical distance between beam levels. Increasing the vertical distance between lower beam levels decreases total frame capacity due to unbraced length flexural buckling. Always consult official manufacturer Load Application and Rack Configuration (LARC) drawings.
What are the standard industrial dimensions for selective pallet racking frames?
Dimensions are standardized around international pallet footprints:
- Standard GMA Pallet (40" × 48"): Requires an upright frame depth of 42 inches (1067mm), allowing a 3-inch (75mm) pallet overhang front and back for secure beam placement. Standard beam length is 96 inches (2438mm) or 108 inches (2743mm) for two-pallet placement.
- Standard Euro Pallet (1200mm × 800mm): Uses 1100mm frame depth with 2700mm beam length (holding 3 Euro pallets side-by-side).
- Frame Heights: Ranging from 2.5 meters to over 15 meters for conventional forklifts, and up to 40 meters for self-supporting clad-rack ASRS structures.
What is your standard production lead time and export shipping terms?
Standard pallet rack orders are produced, quality checked, and packed for shipment within 10 to 15 business days. Complex automated shuttle or ASRS engineered projects typically require 25 to 35 days depending on customization requirements. We offer flexible commercial shipping terms including FOB (Xiamen/Shanghai), CIF, CFR, and turnkey DDP (Delivered Duty Paid) direct to your warehouse site, backed by complete container loading loading diagrams to maximize container volume utilization.
How often must warehouse pallet racking undergo safety inspections?
Under international safety regulations (EN 15635 and AS4084), pallet racking must undergo a formal structural inspection by a qualified inspector at least once every 12 months. Additionally, internal operational staff should conduct weekly visual walkthroughs to detect column dents, twisted diagonal braces, dislodged beam safety pins, or overloaded beam levels. Any damaged component must be offloaded immediately and replaced with original manufacturer parts.
Transform Your Warehouse Volume Into High-Density Efficiency
Send us your warehouse CAD drawing, ceiling clear height, and pallet load specifications. Our engineering department will provide a free 3D layout, rack elevation details, and a competitive factory-direct quote within 24 hours.
