Featured Industrial Light & Heavy Duty Racking Systems
Engineered to international safety certifications (AS4084, RMI, FEM). Select a high-density, modular storage system designed for maximum warehouse cubic efficiency.
DJ Push Back Racking Push-in Racking Pallet Storage System
High-density LIFO storage system utilizing nested cart channels for 2-6 pallet deep storage applications.
Send an Inquiry

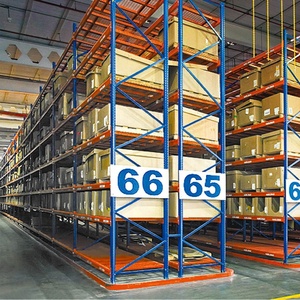

Narrow Aisle VNA Pallet Racking System Adjustable
Precision cold-rolled steel VNA structure maximizing vertical height and floor space for e-commerce hubs.
Send an Inquiry

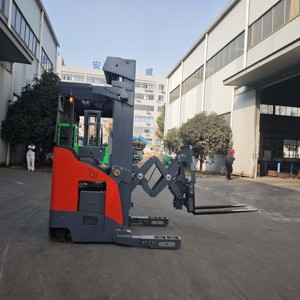

4500 Lbs High Efficiency Double Deep Pallet Racking
Engineered for pantograph reach trucks, storing two pallets deep to balance storage density and accessibility.
Send an Inquiry
Direct Factory High-Density Drive-In Pallet Storage Rack
Maximizes floor utilization up to 85% by eliminating aisles for bulk homogeneous inventory storage.
Send an Inquiry
NEXARA Recycled Material Mould Racking Logistics Pallet
Heavy-duty specialized mould racking paired with flat surface 4-way turnover logistics euro pallets.
Send an Inquiry

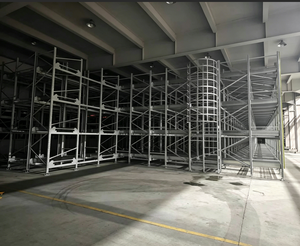

Customized Steel ASRS Smart Automatic Pallet Racking
Fully automated storage and retrieval rack structures built with ultra-precise tolerances and anti-corrosion protection.
Send an Inquiry
Heavy-Duty Corrosion Protected Pallet Racking Systems
Galvanized and specialty coated racking structures designed for harsh chemical or cold storage warehouse environments.
Send an Inquiry
Intelligent ASRS Four-Way Shuttle Pallet Racking
Next-generation robotics-integrated pallet racking delivering 3D movement efficiency for high-throughput logistics.
Send an Inquiry
1. Understanding Light Duty vs. Heavy Duty Pallet Racking Engineering
In modern intra-logistics, selecting the correct structural classification—spanning from light-duty pallet racking and longspan shelving to heavy-duty selective systems—defines the capital efficiency, structural resilience, and operational safety of a warehousing facility. China has established itself as the global epicenter for industrial storage equipment manufacturing, leveraging highly integrated steel supply chains and advanced cold-roll forming technologies.
Light-duty pallet racking systems and heavy-duty shelving are categorized primarily by structural geometry, steel grade, upright column profiles, and uniformly distributed load (UDL) capacities:
- Light-Duty to Medium-Duty Racking: Engineered typically for loads ranging between 200 kg to 800 kg per beam level. These configurations utilize cold-formed steel upright profiles (e.g., 55×45mm or 60×50mm section sizes with 1.2mm to 1.5mm wall thicknesses). Ideal for manual picking operations, tote handling, e-commerce fulfillment centers, and light boxed pallet storage.
- Heavy-Duty Selective Pallet Racking: Designed to sustain loads from 1,000 kg to over 4,500 kg per beam pair (typically 2,000 lbs to 9,000 lbs). Utilizing heavy structural profiles (80×60mm, 90×70mm, 100×70mm, or 120×95mm upright frames with steel gauges up to 2.5mm or 3.0mm Q355B high-tensile steel).
From a metallurgical perspective, premium Chinese racking manufacturers rely on high-grade Q235B and Q355B cold-rolled structural steel. Yield strength testing ensures that under maximum allowable deflection limits (typically $L/200$ or $L/300$ according to European FEM 10.2.02 and ANSI MH16.1 specifications), the system preserves structural integrity without permanent elastic deformation or structural fatigue over decades of continuous forklift interaction.
2. Industry Manufacturing Standards: AS4084, RMI (ANSI MH16.1), and FEM
To successfully import and commission industrial racking systems from China into Western markets (including Australia, North America, Europe, and the Middle East), compliance with localized structural and safety engineering standards is strictly mandatory. SolidFort and top-tier Chinese racking suppliers design, manufacture, and test structural components against three dominant benchmark standards:
- AS4084:2023 (Steel Storage Racking - Australia): Emphasizes rigorous testing for frame compression, beam connector lock behavior, shear capacity, and localized sway stability. Australian standards mandate strict seismic and impact resistance tolerances.
- RMI / ANSI MH16.1 (Rack Manufacturers Institute - USA): Focuses heavily on vertical column baseplate anchoring, torsional buckling limits, dynamic forklift impact factors, and Load Application and Rack Configuration (LARC) drawings.
- FEM 10.2.02 & EN 15512 (European Federation of Materials Handling): Imposes stringent finite element analysis (FEA) modeling, partial safety factor calculations for live and dead loads, and global sway imperfection allowances.
Quality assurance includes surface pre-treatment (iron phosphate washing and degreasing) followed by electrostatic epoxy powder coating curing at 200°C. For aggressive, high-humidity, or cold-chain environments, Hot-Dip Galvanizing (HDG) conforming to ISO 1461 is applied, establishing a zinc layer thickness of 65–85 μm for lifetime corrosion prevention.
Global Procurement & Technological Trends (2026–2030)
Analyzing key shifts in supply chain optimization, automated warehouse integration, sustainable green steel sourcing, and direct factory procurement models.
Direct Factory Sourcing vs. Local Distribution: Total Cost of Ownership (TCO)
Global supply chain executives are increasingly bypassing regional intermediaries to establish direct procurement pipelines with certified OEM manufacturers in Xiamen and major Chinese industrial zones. The economic advantages span beyond basic unit-price reductions:
| Evaluation Dimension | Direct China Manufacturer (e.g., SolidFort) | Regional Local Distributor |
|---|---|---|
| Material Cost / Position | USD $35 – $75 (Factory Direct Unit Cost) | USD $90 – $180 (Includes multi-tier markups) |
| Custom Engineering & CAD | Free tailored engineering & FEA structural reports | Often charged as separate consulting fees |
| Lead Time Flexibility | 10 to 15 days standard production cycle | Subject to local stock availability (4–12 weeks) |
| OEM/ODM Customization | Unlimited: Custom pitch, color, profile, gauge | Limited strictly to standard off-the-shelf inventory |
| Quality Verification | Full steel mill test certificates (MTC) & ISO audits | Third-party reseller claims without mill traceability |
Key Industry Micro-Trends Shaping Future Racking Demand
As logistics operations adapt to e-commerce velocity and labor shortages, procurement strategies for light-duty and heavy-duty storage infrastructure are undergoing three major structural shifts:
- 1. Rise of Hybrid Light-Duty & Shuttle Automation (AS/RS): Warehouses are moving away from static standalone shelving toward hybrid systems where light-duty boltless racking modules seamlessly interface with 4-Way Radio Shuttles and Autonomous Mobile Robots (AMRs).
- 2. High-Density Micro-Fulfillment Centers (MFCs): Urban logistics demand ultra-compact, modular light-duty rack setups featuring adjustable beam pitches (50mm or 75mm increments) to accommodate variable carton heights and maximize vertical space in high-rent urban hubs.
- 3. Decarbonized Green Steel & Environmental Product Declarations (EPD): Leading European and North American enterprise buyers now demand lower carbon footprints across imported structural steel. Top Chinese manufacturers are incorporating recycled scrap content steel produced via Electric Arc Furnaces (EAF), delivering lower embodied carbon per ton.
Racking System Selection & Specification Matrix
Use this technical decision matrix to compare load profiles, space utilization percentages, picking accessibility, and ideal application environments.
| Racking Architecture | Load Capacity (Per Level) | Storage Density | Access Selectivity | Forklift / Equipment Requirement | Primary Industrial Use Case |
|---|---|---|---|---|---|
| Light-Duty Shelving / Racking | 100 kg – 500 kg | Medium | 100% Manual Pick | None (Manual Handling / Trolleys) | E-commerce, Auto Parts, Spare Parts, Retail |
| Selective Pallet Racking | 1,000 kg – 4,500 kg | Standard (approx. 40%) | 100% Direct Access | Standard Counterbalance / Reach Truck | General Warehousing, 3PL, FMCG Logistics |
| Drive-In / Drive-Thru Racking | 1,000 kg – 2,000 kg | Ultra-High (up to 85%) | Low (FILO / FIFO) | Counterbalance / Reach Truck inside bay | Cold Storage, Beverage, Batch Manufacturing |
| Push-Back Cart Racking | 500 kg – 1,500 kg | High (approx. 65%) | Medium (FILO per lane) | Standard Reach Truck | Medium Turnover SKUs, Food & Beverage |
| Automated AS/RS Structure | 500 kg – 2,000 kg | Maximum (up to 90%) | 100% Computer Automated | Stacker Cranes / 4-Way Shuttles | Pharmaceuticals, High-Bay Smart Logistics |
Why Partner with SolidFort Storage Equipment
Combining state-of-the-art automated roll-forming technology with deep international engineering expertise from Xiamen, Fujian, China.
30,000㎡ Modern Production Plant
Equipped with 24 continuous cold-roll forming lines, automatic robotic welding cells, and fully automated CNC punch presses located in Tongan District, Xiamen. Capable of processing over 5,000 tons of structural steel monthly.
Rigorous Quality Assurance & Testing
Every batch of raw Q235B/Q355B steel undergoes yield, tensile, and elongation testing. In-house labs perform salt spray corrosion tests (ISO 9227 >500 Hours) and full-scale column safety compression tests.
End-to-End Export Logistics (53+ Countries)
Full support for FOB, CIF, DDP, and DDU shipping terms. Specialized container loading protocols maximize 40HQ volume utilization, preventing transit scratching and lowering freight cost per pallet position.
Frequently Asked Questions by Industrial Buyers & Procurement Officers
Detailed engineering and commercial answers to clear your purchasing uncertainties.
Cost varies based on raw steel market indices, required load capacity, system type, and surface treatment:
- Selective Pallet Racking: Averages USD $40 to $80 per pallet position for standard heavy-duty setups.
- Light-to-Medium Duty Shelving: Ranges between USD $15 to $40 per tier/shelf depending on wire deck vs. steel panel choice.
- High-Density Drive-In / Shuttle Racking: Ranges between USD $90 to $220 per position due to specialized guide rails and structural bracing.
Yes. Under ANSI/RMI MH16.1, AS4084, and European safety standards, all industrial racking upright columns—regardless of load duty—must be securely anchored to the concrete slab using chemical or expansion anchor bolts. Anchoring prevents frame displacement caused by accidental forklift or pallet impact, maintains structural plumbness, and resists seismic sway forces. Slab thickness should typically be a minimum of 150mm (C25/30 strength concrete).
Racking structural capacity relies on two distinct elements:
- Beam Pair Capacity: Calculated based on the section modulus ($Z$) of the box beam or step beam and the yield strength of the steel, assuming a Uniformly Distributed Load (UDL). Max deflection is capped at $L/200$.
- Upright Frame Capacity: Dictated by the vertical distance between beam levels (unsupported length). As beam spacing increases, the overall column buckling threshold decreases. Always consult manufacturer Load Application and Rack Configuration (LARC) drawings.
For standard 40" × 48" (1016 × 1219 mm) GMA pallets commonly used in North America, standard racking dimensions feature an upright frame depth of 42 inches (1067 mm), providing a 3-inch overhang front and back. The standard beam length for a 2-pallet bay is 96 inches (2438 mm) or 108 inches (2743 mm). For 1200 × 800 mm Euro Pallets, frame depths of 1100 mm and beam lengths of 2700 mm are standard.
SolidFort enforces a strict ISO 9001 quality management protocol. Raw steel coil is verified via Mill Test Certificates (MTC). Profile dimensions, punch pitch tolerances, and weld integrity are checked in real-time on the line. Finished powder-coated products undergo cross-hatch adhesion testing, impact resistance testing, and salt-spray corrosion chamber testing according to ISO standards.
Standard order manufacturing lead time is 10 to 15 business days from deposit receipt and CAD sign-off. Engineered AS/RS or custom projects take approximately 25–30 days. A standard 40-foot High Cube (40HQ) sea container typically accommodates 22 to 26 metric tons of packed steel racking components, bundled on wooden skids with protective corner guards.
Ready to Optimize Your Warehouse Capacity?
Get a complete technical proposal, load calculations, and engineering 2D/3D CAD layouts within 24 hours from our Xiamen design center. Factory direct pricing, zero middleman markup.
