Engineering Mechanics: Reach Truck Ergonomics and Rack Structural Compatibility
In modern high-density warehousing, optimizing vertical cube utilization while preserving rapid throughput requires a granular engineering understanding of material handling equipment dynamics. As a leading China reach truck storage racking factory and exporter, SolidFort Storage Equipment Co., Ltd. manufactures heavy-duty pallet rack systems purpose-built to integrate seamlessly with moving-mast reach trucks, scissor pantograph reach trucks, and Very Narrow Aisle (VNA) articulate forklifts.
Unlike standard counterbalanced forklifts requiring 3.5m to 4.2m aisle clearance, industrial reach trucks operate in narrow aisles ranging from 2.7m to 3.0m (standard reach) down to 1.6m to 1.8m (VNA reach systems). Designing storage racking for these high-reach environments (elevations up to 13 meters) introduces complex structural variables: base-leg outrigger clearance, localized beam impact protection, structural deflection limits under maximum flexure (FEM 10.2.02 deflection tolerance $L/200$), and double-deep load placement eccentricities.
Base Leg (Outrigger) Straddle Clearance
Reach trucks feature forward-extending base legs (outriggers) equipped with dual load wheels. Our bottom beam elevations and pallet foot plates are custom-engineered with minimum 150mm lateral clearance to prevent outrigger-to-column collision during entry.
Double-Deep Pantograph Reach Mechanics
For double-deep reach racking, pantograph scissor mechanisms extend the forks two pallets deep into the rack frame. This requires custom beam profiles (80mm to 160mm depth) to resist torsional moment forces induced during deep cantilever loading.
Seismic & Deflection Tolerances
Every frame assembly is roll-formed with a continuous omega profile featuring 50mm or 75mm beam adjustment pitches. High-bay reach truck configurations incorporate heavy-gauge base anchoring to withstand lateral dynamic sway when reaching to top levels.
Featured Reach Truck Racking Systems Catalog
Explore our factory-direct heavy-duty selective, double-deep, narrow-aisle, and stackable steel racking systems designed specifically for electric reach truck operational profiles.

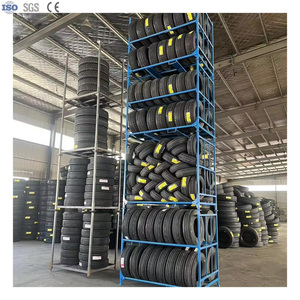

Powder Coating Portable Steel Truck Storage Multi Layer Stacking Metal Tire Stackable Pallet Racks
Heavy-duty modular stacking racks designed for high-density tire and wheel storage. Compatible with reach truck forklift tines for versatile bulk movement.

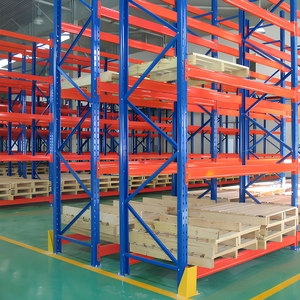

Steel Heavy Duty Double Deep 5 Pallet High Density Warehouse Racking System
Engineered for pantograph reach trucks to store pallets 2-deep per bay, increasing storage density by up to 50% while maintaining low cost per pallet position.
Reach Truck Aisle Steel Warehouse Building Narrow Racking Frame System
Galvanized structural steel upright frames built for narrow aisle reach truck environments. Exceptional resistance against corrosion and operational forklift impacts.
Double Deep Pallet Racking High Capacity System for Reach Truck Forklifts
Maximizes volumetric storage efficiency by pairing deep-reach electric forklifts with reinforced box beams and pallet support bars.

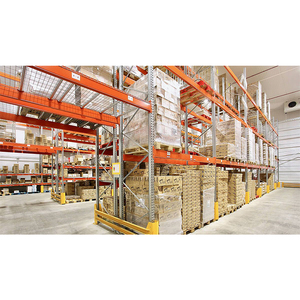

Very Narrow Aisle (VNA) Storage System Reach Truck Solution
Precision-engineered VNA racking for 1.65m aisles. Features integrated floor guide rails and top tie-beams for maximum high-bay stability.
High Lift Mast Reach Truck Electric Material Handling Racking Interface
High-elevation pallet storage racking designed with expanded clear openings to accommodate electric reach truck mast tolerances and tilt functions.
4,500 Lbs Capacity Heavy Duty Double Deep Racking for Scissors Reach Truck
Ultra-rigid step and box beam construction rated at 4,500 lbs (2,040 kg) per beam pair. Specifically tailored for heavy manufacturing and 3PL hubs.

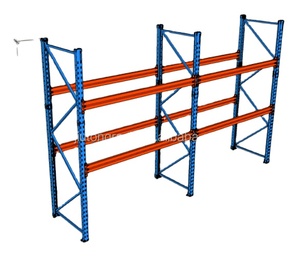

Double Deep Pallet Rack System High Density Reach Truck Storage Solution
Turnkey high-density pallet racking solution optimized for rapid stock rotation, cold storage compatibility, and robust outrigger leg protection.
Reach Truck Racking Technical Comparison Matrix
Selection of the ideal reach truck storage system relies on key operational trade-offs between SKU selectivity, square-footage cost, and aisle dimensions. Below is an engineering evaluation matrix derived from standard SolidFort layout calculations:
| Racking System Type | Aisle Width (AST Required) | Pallet Selectivity | Space Utilization | Max Storage Height | Reach Truck Requirement |
|---|---|---|---|---|---|
| Standard Selective Racking | 2.8m – 3.2m | 100% Direct Access | ~40% - 50% | Up to 12.0m | Standard Moving Mast Reach Truck |
| Double-Deep Pallet Racking | 3.0m – 3.3m | 50% Immediate Access | ~60% - 65% | Up to 11.0m | Pantograph Double-Reach Truck |
| Very Narrow Aisle (VNA) Rack | 1.65m – 1.85m | 100% Direct Access | ~70% - 80% | Up to 15.0m | VNA Man-Up / Articulate Reach Truck |
| Drive-In / Drive-Thru Racking | 3.0m (Entry Aisle) | Low (FILO/FIFO) | Up to 85% | Up to 10.0m | Standard Reach (Check Outrigger Width) |
| Portable Stacking Tire Racks | Open Layout / Variable | Batch / Block Access | Dynamic Flex | 3 to 5 Tier Stack | Reach Truck / Counterbalance Forklift |
Future Procurement Trends in Reach Truck Storage Racking (2025–2030)
As global logistics hubs face escalating real estate costs and supply chain volatility, warehouse managers are shifting from legacy storage setups toward highly integrated, technology-assisted infrastructure. SolidFort’s engineering division tracks four pivotal procurement trends defining the next decade of reach truck storage systems:
1. Transition to AGV & AMR Automated Reach Trucks
Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) operating reach masts require tighter rack manufacturing tolerances. Beam deflective deviation must remain below 3mm at maximum loading to ensure optical positioning sensors and RFID sensors align accurately with pallet entry windows.
2. Sub-Zero Cold Chain High-Cube Engineering
With refrigerated logistics booming globally, demand for double-deep and shuttle reach racking made from low-temperature structural steel (Q355D/E rated down to -30°C) has surged. Specialized anti-frost powder coating prevents micro-fissuring caused by extreme thermal contraction.
3. Hybrid High-Bay VNA Systems with Wire Guidance
To reduce human operator fatigue and collision damage, warehouses are retrofitting standard selective reach racking into VNA layouts guided by inductive floor wires or laser anchors. This trend delivers up to 40% floor space savings without requiring total automation capital expenditure.
4. Sustainable Green Steel & Low-Carbon Export Sourcing
International procurement specs now heavily weigh carbon footprints. SolidFort utilizes 100% recyclable cold-rolled coil, closed-loop electro-coating lines, and zero-VOC epoxy powder coatings, meeting European REACH and ISO 14001 environmental benchmarks.
Strategic Development Trends in Warehouse Material Handling Racking
The structural design of pallet racking is evolving from static passive frames into dynamic, intelligent warehouse assets. Modern industrial installations incorporate embedded load sensors, real-time rack damage monitoring, and modular expansion capabilities.
Optimizing Vertical Footprints with Ultra-Tall Upright Rolled Sections
With logistics facilities pushing ceiling clearances to 14 meters and beyond, standard 90mm upright posts are being replaced by 120mm and 140mm deep profile columns with increased material thickness (2.5mm to 3.0mm structural steel). These extra-heavy profiles prevent column buckling under severe axial loads while maintaining full compatibility with reach truck mast tilting angles.
Integrated Smart Protectors and Seismic Energy Absorbers
Because reach trucks operate in tight proximity to rack uprights, lower column damage is the single largest cause of racking failure worldwide. Modern development emphasizes wrap-around heavy steel guard rails, rubber-damped base protectors, and ductile anchor connections capable of absorbing forklift impact energy without structural frame collapse.
SolidFort Storage Equipment Co., Ltd. — Enterprise Manufacturing Strength
Operating out of a modern 30,000㎡ manufacturing plant in Tongan Park, Tongan District, Xiamen, China, SolidFort has established itself as an elite global exporter of industrial rack systems. Since 2016, our engineering teams have executed over 10,000 warehouse projects across 53+ countries.
Equipped with fully automated continuous roll-forming lines, robotic welding arms, and dynamic powder coating systems, we maintain rigorous factory-direct quality control. Every order undergoes load-deflection testing, raw material tensile verification, and pre-shipment container loading planning.
Frequently Asked Questions (FAQ) for Reach Truck Storage Racking
Technical and commercial clarity for warehouse buyers, logistics directors, and racking distributors.
AST = Turning Radius + Load Length + Safety Clearance (usually 200mm).Always verify your forklift manufacturer's spec sheet prior to final layout approval.
- Beam Pair Capacity: Maximum uniformly distributed load (UDL) a pair of horizontal beams can carry without exceeding $L/200$ deflection.
- Upright Frame Capacity: The total compressive load column frames support, which decreases as vertical beam spacing (unbraced height) increases.
