High-Performance Storage Racking Systems
Certified engineered solutions directly from our 30,000㎡ Xiamen manufacturing facility.
Information Gain: Engineering Racking Systems specifically for the Milan Logistics Hub
Operating a warehouse in the Greater Milan Metropolitan Area (Metropoli di Milano), Novara, or the Brescia-Bergamo industrial corridor presents unique operational, regulatory, and financial pressures. Real estate costs for prime Class-A logistics facilities in Northern Italy now range between €65 to €85 per square meter annually. Maximizing vertical density while adhering strictly to Italian structural and fire safety codes is critical.
Localized Storage Scenarios in the Milan Logistics Region
Custom industrial racking configurations built to support the diverse commercial sectors of Lombardy and Northern Italy.
Fashion & Luxury Garment Fulfillment (Malpensa & Segrate Hubs)
Milan is the global capital of fashion. Logistics hubs surrounding Malpensa Airport, Segrate, and Peschiera Borromeo require multi-tier mezzanine picking structures integrated with high-density wire decking. Our drop-in mesh decks feature smooth, burr-free flush edges that prevent snagging on high-value apparel cartons, while supporting dense SKU bin layouts with 50x100mm grid patterns.
Automotive & Machinery Parts (Brescia - Bergamo Corridor)

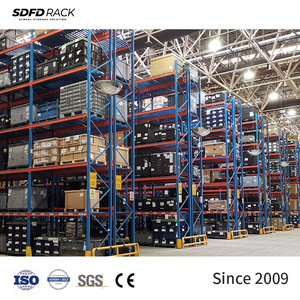

Heavy manufacturing facilities along the A4 highway corridor demand robust heavy-duty selective pallet racking capable of supporting point loads exceeding 4,000 kg per level. Equipped with structural inverted U-channel wire decks and heavy-duty frame column guards, these systems handle heavy steel dies, cast metal engine components, and specialized industrial hardware safely without deck deflection.
Automated Cold Storage & FMCG (Bentivoglio & Liscate Parks)
Temperature-controlled food and pharmaceutical logistics centers require high-density Radio Shuttle and 4-Way Shuttle RGV systems operating reliably down to -28°C. SolidFort’s radio shuttle cart storage maximizes volume utilization up to 85%, reducing refrigerated room operational energy costs while ensuring strict LIFO/FIFO inventory rotations.
Logistics Trends Driving Storage Racking Specs in Italy
How macroeconomic shifts, warehouse automation, and stringent safety standards shape local procurement demand.
Vertical Space Maximization
With prime logistics land scarce around the Milan Outer Ring Road (A51/A52), operators are shifting to 12m–14m high-bay selective pallet racking systems to squeeze maximum cubic volume out of existing footprints.
Strict Fire Safety (VVF Compliance)
Italian fire prevention authorities increasingly reject solid wood or steel shelves in facilities over 6 meters high. Galvanized wire mesh decking with >70% open area has become mandatory for in-rack sprinkler penetration.
Industry 4.0 Incentive Adoption
Under Italy's Piano Transizione 4.0, warehouse operators qualify for tax credits when implementing semi-automated Radio Shuttle, RGV, and ASRS pallet racking integrated with Warehouse Management Systems (WMS).
ESG & Circular Materials
Major 3PL providers serving international fashion and automotive clients mandate 100% recyclable certified structural steel (Q235B/Q355B) finished with heavy metal-free powder coatings.
Selecting the Right Pallet Racking Architecture
Comprehensive technical metrics evaluated specifically for standard Euro Pallet (EPAL) dimensions and Italian warehouse operating norms.
| Storage System Type | EPAL 1 Selectivity | Floor Footprint Utilization | Typical Beam Load (Pair) | Fire Safety (Sprinkler Clearance) | Best Italian Industry Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct | 40% - 50% | 1,000 kg – 4,500 kg | Excellent (with Wire Decking) | 3PL E-Commerce & Retail Distribution |
| Radio Shuttle Racking | Batch / High SKU | 80% - 85% | 1,500 kg per shuttle cart | High (requires flanged wire deck) | Cold Storage (-25°C) & Beverage Hubs |
| Drive-In Racking | LIFO / Low | 70% - 75% | 1,000 kg – 1,500 kg / level | Moderate (Deep channel bays) | Homogeneous Bulk Seasonal Storage |
| Gravity Roller Pallet Flow | 100% FIFO | 75% - 80% | 1,200 kg / pallet position | Excellent (Open brake line tracks) | Pharmaceuticals & Fast-Expiry FMCG |
| 4-Way Shuttle ASRS | Automated WMS | 85% - 90% | 1,500 kg / position | High (Integrated sprinkler bays) | Industry 4.0 Smart Automated Factories |
Wire Mesh Decking Specifications & Structural Integrity
Why SolidFort wire decks are specified by leading European warehouse rack installation contractors.
Channel Construction Options
Universal Step Channels: Designed for standard 1-5/8" (42mm) step beams, resting securely inside the beam step for a completely flush top surface.
Flared / Universal Channels: Fits box beams and structural channel beams, wrapping neatly over the beam face to distribute heavy point loads across the entire horizontal profile.
Wire Gauge & Surface Finishes
Manufactured from premium cold-drawn Q235 steel wire with diameters ranging from 4.8mm (6 gauge) to 6.0mm (4 gauge).
Bright Zinc Electro-Plating: Smooth, clean finish ideal for dry indoor logistics centers.
Hot-Dip Galvanized (HDG): 65µm+ zinc coating engineered for high-humidity and outdoor storage operations.
Seismic & Safety Anchor Engineering
In full compliance with Italian NTC 2018 (Norme Tecniche per le Costruzioni) and UNI EN 16681 standards for seismic racking.
Every upright frame is engineered with enlarged footplates, structural floor shims, and heavy-duty mechanical expansion anchor bolts rated for dynamic seismic shear and uplift forces.
Direct Factory Sourcing Powerhouse
Eliminate middleman markups while securing engineered compliance, rapid production, and dedicated global logistics support.
Direct Factory Pricing
30,000m² manufacturing plant in Xiamen, China. In-house cold roll-forming lines, robotic welding stations, and continuous automated powder coating lines deliver maximum cost efficiency.
10-15 Day Rapid Lead Time
We maintain continuous stock of prime raw steel coils. Standard selective racking and wire decking orders are produced and ready for container shipment within 10 to 15 days.
Certified Quality & Permits
Designed strictly to AS4084, RMI (ANSI MH16.1), and FEM standards under ISO9001 certification. Full Material Test Certificates (MTC) and CE compliance documentation provided.
Free Engineering & Layouts
Our engineering team creates complete 2D CAD warehouse layout proposals and 3D rack elevations with exact load capacity calculations within 24 hours of inquiry.
Frequently Asked Questions by Milan Warehouse Buyers
Essential technical, legal, and operational guidance for importing racking systems into Italy.
What is the standard lead time and sea shipping duration to Milan?
Production at our Xiamen factory takes 10–15 days for standard orders. Direct sea freight from Xiamen port to major Northern Italian ports (La Spezia or Genoa) takes approximately 26–30 days. From the port, inland container trucking to logistics parks across Greater Milan (Novara, Lodi, Segrate, Arese) takes 1–2 days. Total door-to-door transit time is typically under 45 days.
Do SolidFort racking systems comply with Italian EN 15512 standards?
Yes. Our pallet racking systems are engineered according to UNI EN 15512 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design) and European FEM 10.2.02 guidelines. We provide certified Load Application and Rack Configuration (LARC) drawings and structural calculations for municipal permits.
Why is wire decking required over timber decking in Italian warehouses?
Under the Italian Fire Prevention Code (Codice di Prevenzione Incendi - D.M. 3 agosto 2015) enforced by Vigili del Fuoco (VVF), solid wooden or steel shelves act as fire barriers. Galvanized wire mesh decking provides over 70% open surface area, allowing ESFR ceiling sprinklers to douse flames on lower beam levels instantly, lowering facility insurance premiums.
What standard dimensions fit Euro Pallets (EPAL 1 & EPAL 2)?
For standard EPAL 1 pallets (800mm W x 1200mm L), we engineer 1100mm deep upright frames, creating a 50mm safety overhang at the front and back. The most efficient beam length is 2700mm (holding 3 EPAL 1 pallets side-by-side) or 1800mm (holding 2 pallets). For EPAL 2 pallets (1000mm W x 1200mm L), 2700mm or 3600mm beams are recommended.
What import duties or customs procedures apply when buying from China?
Pallet racking and steel shelving imported into Italy from China fall under HS Code 7308.90 (Steel Structures). We provide complete export documentation including Commercial Invoice, Packing List, Bill of Lading, Certificate of Origin (Form A/CO), and CE Declarations. We quote on FOB, CIF, or DDP (Delivered Duty Paid) terms where we handle customs clearance directly.
Do pallet upright frames require floor anchoring in Italy?
Yes. In compliance with Italian workplace safety law (D.Lgs. 81/08) and EN 15512 rules, every rack column footplate must be anchored to the industrial concrete floor slab using certified mechanical or chemical anchors. Our engineering team calculates exact anchor diameter and embedment depths based on your slab thickness and local seismic acceleration values.
What load capacity ratings are available for heavy industrial applications?
Our heavy-duty selective rack beam pairs support uniformly distributed loads (UDL) from 1,000 kg up to 4,500 kg per level. Upright frame capacities range from 8,000 kg up to 24,000 kg depending on upright steel profile size (80mm to 120mm face width), steel gauge (1.8mm to 3.0mm), and unbraced vertical beam spacing levels.
Can Radio Shuttle systems work in cold storage (-25°C) facilities?
Absolutely. SolidFort Radio Shuttle carts are built with cold-resistant lithium-ion battery packs, IP65 sealed electrical enclosures, and low-temperature hydraulic lubricants certified to operate continuously down to -28°C. This system maximizes cold room cube space while preventing operator heat-loss exposure.
