High-Density Storage & Industrial Racking Solutions
Engineered for high cubic space utilization, heavy pallet capacities (1000kg–4500kg), and rigorous logistics cycles.
LIFO Racking Architecture for Azerbaijan’s Expanding Logistics Hubs
As the Republic of Azerbaijan establishes itself as the primary multi-modal bridge of the Trans-Caspian International Transport Route (Middle Corridor), warehouse operators in Baku, Alat Free Economic Zone (AFEZ), and Sumqayit face skyrocketing industrial real estate costs and heightened throughput demands. Maximizing floor area utilization without expanding facility footprints has transitioned from a operational preference to a financial mandate.
Last-In, First-Out (LIFO) pallet storage systems—principally comprising Push Back Racking Systems, Drive-In / Drive-Thru Racking Systems, and high-density Radio Shuttle Racking Systems configured for LIFO logic—provide the optimal engineering answer. By reducing operator aisles and storing pallets 2-to-6 deep (Push Back) or up to 10-20 deep (Drive-In/Shuttle), LIFO architectures increase floor space efficiency by up to 75% to 85% compared to standard selective pallet racking.
SolidFort Structural Engineering Standards
Manufactured in our 30,000㎡ Xiamen production facility, SolidFort racking equipment complies strictly with global structural standards, ensuring robust seismic resilience across the Caucasus geological zone:
- FEM 10.2.02: European Code for Industrial Steel Racking Design
- ANSI/RMI MH16.1: Specification for Design, Testing, and Utilization of Industrial Steel Storage Racks
- AS4084-2012: Australian Standard for Steel Storage Racking
- ISO 9001:2015: Certified Structural Quality Management System
Optimized LIFO Racking Deployments Across Azerbaijan Industries
Specific operational profiles require tailored structural setups. SolidFort engineers custom rack configurations designed around regional building codes, temperature requirements, and cargo turn rates.
1. Alat Free Economic Zone (AFEZ) & Port of Baku Transit Hubs
Operational Profile: High-volume containerized transit cargo, cross-docking operations, and bulk pallet storage connecting Central Asia, China, and Western Europe.
LIFO Engineering Solution: Heavy-Duty Push Back Racking (3 to 5 pallets deep). Nesting push-back carts mounted on inclined structural steel beams allow standard counterbalanced forklifts to push front pallets back. When retrieving, gravity feeds the next pallet forward automatically. Eliminates forklift rack entry, preventing equipment strikes while maintaining rapid turnaround along the BTK (Baku-Tbilisi-Kars) rail corridor.
2. Cold Storage & Perishable Logistics (Baku & Absheron)
Operational Profile: Refrigerated and frozen food distribution facilities operated by regional FMCG leaders requiring low cubic energy cost per pallet slot.
LIFO Engineering Solution: Drive-In / Drive-Thru Racking and Radio Shuttle LIFO configurations. Operating at cold temperatures (-25°C), energy density is paramount. Drive-In racking removes aisle gaps, allowing up to 85% of warehouse volume to be chilled space. SolidFort supplies structural steel posts with hot-dip galvanized or high-spec electrostatic powder coatings to prevent corrosion under cyclic condensation.
3. Chemical & Petrochemical Storage (Sumqayit Industrial Park)
Operational Profile: Heavy industrial polymer totes, raw chemical drums, and specialized industrial equipment requiring high unit load capacity (up to 3000kg/level).
LIFO Engineering Solution: Reinforced Drive-In Pallet Racking featuring heavy-duty 100mm–120mm Omega upright profiles and structural steel ground guide rails. Engineered with dual-anchor footplates to withstand dynamic loading and floor shear strain caused by heavy material handling vehicles.
Azerbaijan Warehousing Trends Driving LIFO Rack Adoption
Strategic economic initiatives in the South Caucasus region are fundamentally reshaping warehouse specification standards.
The Middle Corridor Cargo Surge
Following international supply chain realignments, transcontinental freight through the Middle Corridor (China-Kazakhstan-Azerbaijan-Georgia-Europe) surged significantly. Logistics hub developments around Baku require high-density storage frameworks to store buffer inventory before regional rail and Caspian vessel dispatches. LIFO systems enable operators to manage batch shipping lots efficiently without allocating vast square meterage to low-density selective aisleways.
Transition to Grade-A Warehousing Infrastructure
Historically reliant on legacy Soviet-era low-clearance storage bays, Azerbaijan’s logistics sector is rapidly modernizing into Grade-A facilities with clear heights exceeding 12 to 14 meters. Utilizing vertical building height requires rigid structural upright design, high-strength cold-rolled Q355B steel grade profiles, and precise beam displacement calculations—engineering hallmarks built into every SolidFort rack export.
LIFO Structural Mechanics: Push Back vs. Drive-In vs. Radio Shuttle
Selecting the ideal LIFO storage configuration depends on SKU diversity, inventory turnover speed, forklift fleet specs, and capital spending budgets.
| Storage System Type | Operative Logic | Pallet Depth Range | Floor Space Utilization | Forklift Rack Entry Required? | Best Azerbaijan Operational Use |
|---|---|---|---|---|---|
| Push Back Racking | LIFO (Gravity Cart Flow) | 2 to 6 Pallets Deep | ~75% High Density | No (Exterior Access) | Alat FEZ transit warehouses with medium SKU diversity. |
| Drive-In Racking | LIFO (Cantilever Arm Rail) | 4 to 10+ Pallets Deep | ~85% Max Density | Yes (Enters Rack Lane) | Cold storage facilities, seasonal agricultural bulk lots. |

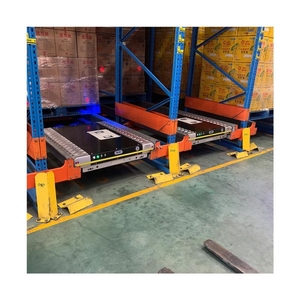

| Radio Shuttle System | LIFO or FIFO (Robot Runner) | 10 to 40+ Pallets Deep | ~90% Ultra Density | No (Shuttle Transport) | High-throughput beverage plants and petroleum polymer storage. |

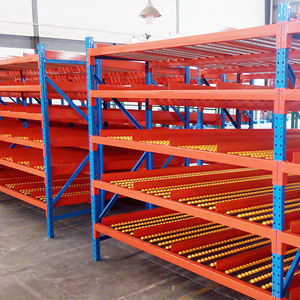

| Carton Flow / Roller Rack | FIFO / Hand Pick LIFO | Multi-roller Tracks | ~60% Picking Layout | No (Manual / AGV) | E-commerce fulfillment centers in Greater Baku area. |
Seismic & Structural Integrity for the South Caucasus Region
Azerbaijan is located within the active Alpine-Himalayan seismic belt (Caucasus region). Standard non-engineered rack structures are subject to catastrophic collapse during seismic shaking under heavy loads. SolidFort addresses these localized challenges through dedicated structural engineering features:
Heavy-Duty Base Plates
Extended anchor hole patterns designed for chemical anchor bolts secured into reinforced C25/C30 concrete slabs.
Omega Profile Uprights
Multiple cold-formed bend radiuses increase torsional rigidity under horizontal acceleration vector stress.
Safety Lock Connectors
Patented automatic safety pins prevent beam dislodgement caused by upward forklift boom impact or tremors.
Why Sourcing Direct from SolidFort Advantageous for Azerbaijan Buyers
As a true manufacturer based in Xiamen, China, SolidFort bridges high-spec engineering with cost efficiency, providing complete OEM/ODM customized rack structures directly to regional contractors and project developers.
Integrated 30,000㎡ Plant & Advanced Roll Forming
Unlike trading intermediaries, SolidFort operates automated steel slitting, cold roll-forming lines, robotic welding stations, and an automated electrostatic powder coating line. This ensures precise tolerance controls (within ±0.5mm), consistent paint thickness (>65 microns), and zero structural defects.
Engineered Proposal & Free 3D CAD Layouts
Our in-house structural engineers evaluate your warehouse architectural drawings, slab load capacity, forklift turning radius (AST), and pallet specs to deliver free full CAD layouts, structural calculation reports, and Load Application and Rack Configuration (LARC) drawings prior to contract signing.
Streamlined Logistics to Baku (Sea & BTK Rail)
We provide full container loading optimization (maximizing 40ft HQ container cubic utilization up to 98%), supplying flat-packed racking protected by corrugated corner guards and heavy-duty strapping. Expedited sea freight to Poti/Batumi ports with rail connection to Baku, or direct rail freight solutions.
Rigorous Quality Certification & Warranty
Every beam pair and upright frame is structural load tested. All components carry CE and ISO documentation, backed by SolidFort's comprehensive multi-year structural structural warranty on prime steel components.
Azerbaijan Warehouse Buyer FAQ: Technical & Sourcing Essentials
Direct technical responses addressing compliance, installation, freight logistics, and design standards.
Why choose Push Back or Drive-In (LIFO) over Standard Selective Racking in Baku?
Selective racking requires wide operating aisles (typically 3.2m to 3.8m for standard forklifts), which consumes over 50% of your total warehouse floor space in gangways. Industrial real estate values in urban Baku and primary industrial zones like Sumqayit make aisle space expensive. LIFO racking collapses multiple working aisles into a single access face, enabling you to store 60% to 85% more pallets in the exact same warehouse building shell.
How does climate and proximity to the Caspian Sea affect steel finish choices?
The coastal atmosphere along the Absheron Peninsula contains ambient salt humidity. For standard indoor dry logistics, SolidFort's heavy-duty 65+ micron electrostatic powder coating provides superior impact and corrosion protection. For unheated port-side warehouses or cold storage facilities with condensation cycles, we recommend hot-dip galvanized steel components (HDG) conforming to ISO 1461 standards to guarantee zero rust formation over decades of operation.
What concrete slab specifications are required before installing heavy-duty LIFO racking?
For heavy push-back or drive-in systems loaded up to 1000kg–2000kg per position and heights above 6 meters, concrete floor slabs should have a minimum thickness of 150mm–200mm with a minimum compressive strength rating of C25 or C30. The floor surface levelness should conform to FM2 standards to prevent forklift mast tilt and rack upright stress concentration.
What is the standard production and shipping lead time from China to Azerbaijan?
Standard factory manufacturing time at SolidFort's Xiamen plant is 10 to 15 days from technical drawing confirmation. Transport via maritime shipping to Black Sea ports (Batumi/Poti) followed by rail transit to Baku typically takes 25 to 35 days, depending on carrier schedules. Direct multi-modal rail options via the Trans-Caspian corridor are also supported.
Are custom pallet dimensions supported (e.g., 1200x1000mm, 1200x800mm Euro Pallets)?
Yes. SolidFort engineers custom beam spans (e.g., 2300mm, 2700mm, 3300mm) and custom frame depths (e.g., 800mm, 1000mm, 1100mm, 1200mm) designed around your specific local pallet geometry, bottom board layout (2-way or 4-way entry), and total unit load height.
