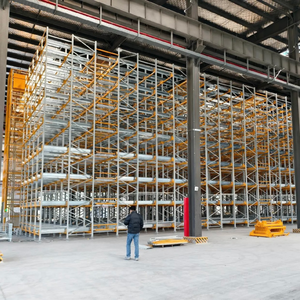

Heavy-Duty Four-Way Shuttle Storage System Automated Pallet Racks for Industrial Warehousing & Intralogistics
Boltless Heavy Duty Pallet Rack System Industrial Warehouse Storage Solution

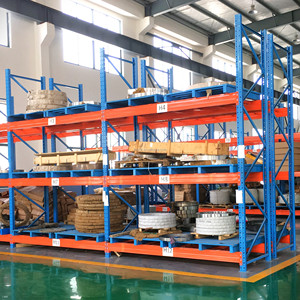

OEM Factory Wholesale Warehouse Racking Industrial Racks Customized Pallet Racking System Heavy Duty Steel Racks For Storage
Customized Warehouse Storage Rack Pallet Flow Rack Shelving Lineside Roller Flow Rack Gravity Carton Flow Racking

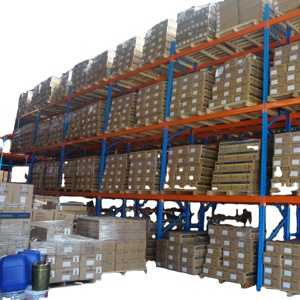

China Manufacturer Heavy Duty Warehouse Shelving/Storage Pallet Rack /Selective Heavy Duty Racking System
High Density Pallet Racking Back To Back Double Row Pallet Rack Halve Aisle Space Storage, Almacenaje de Doble Fila

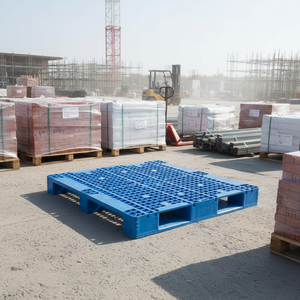

1414 JINDU HDPE Steel-Reinforced Industrial Heavy Duty Pallet Racking 3 Skids Runners 4-Way Entry Single Faced Long Service Life
Technical Whitepaper
Strategic Multi-Tier Pallet Racking Systems for Sri Lanka’s Industrial Hubs
An engineering report on optimizing vertical warehouse clearance, structural integrity under tropical ambient conditions, and capital efficiency across Colombo, Biyagama, Katunayake, and Hambantota industrial zones.
“In Sri Lanka's rapidly growing logistics corridors—where land acquisition around the Port of Colombo and Free Trade Zones commands premium prices—multi-tier pallet racking systems provide up to 300% expanded floor space without expanding the physical footprint of the warehouse structural slab.”
1. Engineering Architecture of Multi-Tier Pallet Racking
Multi-tier pallet racking systems (also referenced as multi-level rack-supported mezzanines) utilize standard heavy-duty upright frames and box beams to form a structural framework that supports integrated walkways, staircases, goods lifts, and multiple floors of picking levels. Unlike standalone structural mezzanine platforms, multi-tier racking leverages the load-bearing capacity of the heavy-duty vertical storage racks themselves, dramatically reducing steel mass while multiplying operational usable surface area.
Engineered for high SKU counts and intensive manual picking operations, these systems integrate customized steel floor decking, steel mesh walkways, or anti-slip galvanized grating. Upright frames constructed from high-tensile cold-rolled Q355B steel are continuously roll-formed to withstand combined axial compressive loads and lateral floor live loads ranging from 300 kg/m² to over 1,500 kg/m² per upper floor tier.
Structural Upright Frames
Roll-formed profiles up to 120mm wide with 2.5mm–3.0mm thickness, perforated at 50mm or 75mm pitch for precision beam height adjustment.
Decking & Walkway Subsystems
Selectable open steel grating for optimum fire sprinkler water penetration, perforated steel panels, or heavy-duty plywood overlaid with steel sheet.
Safety & Egress Integration
Fully integrated handrails, kickplates, sliding goods loading gates, wire mesh safety back-stops, and emergency exit staircase towers compliant with international building codes.
2. Localized Application Scenarios Across Sri Lanka’s Core Sectors
Sri Lanka’s strategic position along main Indian Ocean shipping routes has solidified its role as a premier transshipment hub. However, localized climate factors (high coastal humidity and salt air) combined with sector-specific operational demands require tailor-made storage solutions:
A. Apparel & Textile Manufacturing (Free Trade Zones)
In export processing zones such as Katunayake, Biyagama, and Seethawaka, major garment manufacturers handle tens of thousands of fabric rolls, accessories, trim items, and finished apparel SKUs. Multi-tier pallet racking allows simultaneous palletized raw material storage on lower beam levels while dedicated upper walkway tiers enable rapid piece-picking for production lines.
B. Ceylon Tea Processing & Export Logistics
Tea export facilities around Kelaniya, Wattala, and Colombo require clean, well-ventilated, high-density storage for tea chests, bulk bags, and value-added retail cartons. Multi-tier structures maximize ceiling heights up to 10–12 meters while preventing crushing forces on lower stack items through rigid beam-supported levels.
C. Pharmaceutical & FMCG Distribution Networks
Leading Sri Lankan retail chains (e.g., Keells, Cargills) and pharmaceutical importers utilize multi-tier shelving to process fast-moving consumer goods. The compartmentalized levels support Batch/Lot tracking and FIFO inventory control with direct ergonomic access for order selectors.
D. Cold Storage Facilities near Ports & Airports
Operating cold storage in Sri Lanka incurs substantial electricity costs. Multi-tier racking and dense Radio Shuttle systems installed in refrigerated facilities significantly lower per-pallet refrigeration costs by optimizing thermal volume and reducing unconditioned void space.
3. Technical Specifications & Structural Standards Matrix
SolidFort manufactures industrial racking to exact international standard engineering guidelines. Compare how Multi-Tier Pallet Racking compares to traditional warehouse configuration choices:
| Storage System Type | Space Utilization | Selectivity Rate | Max Floor Height | Ideal Sri Lankan Use Case |
|---|---|---|---|---|
| Multi Tier Pallet Racking | Very High (85%–90%) | 100% Direct Access | Multi-Level (Up to 12m) | Garment manufacturing, high-SKU picking, tea retail packaging |
| Selective Pallet Racking | Standard (40%–50%) | 100% Direct Access | Single Level (Up to 12m) | General warehouse storage, mixed freight pallet loads |
| Radio Shuttle Automated Racking | Ultra High (85%–95%) | Batch / High Volume | High Bay (Up to 16m) | Cold storage, beverage distribution, homogeneous bulk pallets |
| Drive-In / Drive-Thru Racking | High (75%–85%) | LIFO / Low Selectivity | High Bay (Up to 10m) | Seasonal inventory, agricultural produce export, bulk raw goods |
| Cantilever Racking System | Medium (60%–70%) | 100% (Long Goods) | Up to 8m | Aluminum extrusions, PVC piping, timber, steel sheet stock |
4. Corrosion Protection for Sri Lanka's Marine & Tropical Climate
Sri Lanka's coastal industrial areas—especially within 15 km of the Indian Ocean, such as Colombo Port, Ja-Ela, and Hambantota—exhibit elevated atmospheric salinity and humid ambient conditions (RH often exceeding 80%). Standard industrial paint coatings degrade quickly under these circumstances, leading to premature sub-surface oxidation.
SolidFort combats tropical structural corrosion through a 9-stage automatic chemical pretreatment process followed by thermosetting pure epoxy-polyester powder coating electrostatically applied at 70–90 microns. For high-humidity or cold-chain condensation environments, we supply hot-dip galvanized uprights and zinc-plated beam end connectors meeting ISO 1461 standards, ensuring an operational service life exceeding 20 years.
5. Why Sri Lankan Procurement Managers Partner Direct with SolidFort Factory
Factory-Direct Pricing
Eliminate middleman margins. Source straight from our 30,000㎡ modern manufacturing plant in Xiamen with transparent raw steel index pricing.
Free CAD Layouts & Engineering
Our in-house structural engineers prepare customized 2D/3D CAD warehouse layout proposals and seismic calculation reports within 24–48 hours.
FOB, CIF & DDP Shipping to Colombo
Full container loading optimization, moisture-proof export packaging, and sea freight handling directly to Port of Colombo (Port Code: LKCMB).
Buyer Knowledge Base
Frequently Asked Questions by Sri Lankan Procurement Engineers
Get authoritative technical answers regarding load calculations, structural concrete requirements, shipping logistics, and compliance.
What floor slab thickness is required for Multi-Tier Pallet Racking in Sri Lanka?
For standard multi-tier pallet racking systems, a reinforced concrete floor slab with a minimum thickness of 150mm to 200mm and a compressive concrete strength of C25/30 or higher is required. The slab must be capable of bearing point loads (footplate anchor reactions) ranging from 30 kN to over 80 kN per column anchor point. Our engineering team provides exact point-load calculations so your local civil contractor can verify slab integrity prior to installation.
How long does shipping take from your factory to the Port of Colombo?
Standard order manufacturing takes 10 to 15 days at our factory. Ocean transit time from Xiamen Port to Colombo Port typically ranges between 8 to 12 days via direct container shipping routes. Including export customs declaration and local customs clearance, total lead time from order confirmation to warehouse delivery in Sri Lanka is generally 25 to 35 days.
Do your racking systems comply with international structural safety standards?
Yes. All SolidFort pallet racking systems are designed, calculated, and manufactured in accordance with AS4084-2012 (Australian Standard for Steel Storage Racking), RMI / ANSI MH16.1 (Rack Manufacturers Institute), and FEM 10.2.02 (European Federation of Materials Handling). ISO 9001 quality certificates and mill test reports (MTR) for raw steel batches are supplied with every order.
Can multi-tier racking be expanded or relocated in the future?
Absolutely. SolidFort multi-tier systems feature boltless beam-to-frame connections and modular bolt-together structural floor supports. If your company expands operational footprint or moves to a new facility in Sri Lanka, the entire system can be unbolted, reconfigured, or extended vertically/horizontally by adding standard modular frame components.
What anti-corrosion protection is recommended for warehouses near Sri Lankan ports?
For facilities located within coastal industrial zones (such as Wattala, Colombo Port, or Hambantota), we recommend our heavy-duty electrostatic epoxy powder coat finish with an underlying zinc-phosphate corrosion barrier (70–90 microns thick). For ultra-high humidity or cold storage environments, we offer hot-dip galvanizing (HDG) for upright frames and zinc plating for beam connectors and locking pins.
Do you provide installation guidance and supervision for Sri Lanka projects?
Yes. Every shipment includes step-by-step 3D assembly manuals, structural load plaque drawings (LARC), and component layout diagrams. For large-scale multi-tier projects in Sri Lanka, we provide remote video installation guidance or dispatch experienced installation engineers to supervise local installation crews on-site.
How does Multi-Tier Pallet Racking compare in cost to building a concrete mezzanine?
Multi-tier rack-supported systems are significantly more cost-effective than traditional civil concrete floor construction. A rack-supported multi-tier system typically costs 30% to 50% less than a civil concrete mezzanine, requires zero permanent structural modification to the building shell, can be depreciated as industrial equipment, and installs in a fraction of the time.
