Recommended OEM/ODM Double Row Pallet Racking Systems
Precision-engineered pallet racking configurations optimized for Costa Rica's industrial supply chains, medical device fulfillment centers, and agricultural export cold stores.
1. Technical Architecture of OEM/ODM Double Row Pallet Racking

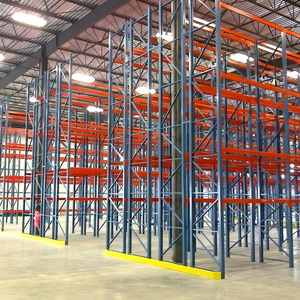

Double row pallet racking—often deployed as back-to-back selective racking or double-deep pallet configurations—represents the gold standard for modern warehouse space optimization. By interconnecting two single rows of pallet racking using structural row spacers, enterprise facilities eliminate unnecessary operating aisles, achieving a Volumetric Storage Efficiency increase of 30% to 45% compared to traditional single-row layouts.
For industrial operators in Central America, purchasing directly from an established original equipment manufacturer (OEM) and original design manufacturer (ODM) ensures that structural steel grades, frame geometries, and load-bearing beam profiles are calculated precisely for local operational realities rather than off-the-shelf compromises.
Structural Steel Integrity
Utilizing high-tensile cold-rolled steel (Q235B and Q355B grades), our double row systems undergo continuous roll-forming. Upright profiles feature multi-stage ribbed cross-sections to maximize section modulus and torsional rigidity.
Rigid Row-Spacer Tie Links
Double rows are mechanically linked across the top and intermediate frame joints using heavy-duty tubular or channel row spacers. This dual-frame connection effectively doubles the structural depth in seismic shear calculations.
Advanced Surface Protection
Finished with an automated 9-stage pre-treatment cleaning, followed by electrostatic epoxy-polyester powder coating (60–80 μm thickness) or hot-dip galvanizing, ensuring immune resistance to tropical humidity.
2. Macro Trends Driving Storage Automation in Costa Rica
Costa Rica has rapidly positioned itself as Central America’s premier logistics hub, driven by robust nearshoring initiatives, expansion of the Régimen de Zona Franca (Free Trade Zone Regime), and massive infrastructure investments such as the Moín Container Terminal (MCT) operated by APM Terminals in Limón.
| Logistics Ecosystem / Hub | Primary Sector Focus | Storage System Requirement | Key Operational Driver |
|---|---|---|---|
| Gran Área Metropolitana (GAM) (San José, Alajuela, Heredia) |
E-commerce fulfillment, 3PL distribution, retail consumer goods | Selective Double Row Racking & Multi-Tier Mezzanines | High real estate lease rates ($7–$11/sqm); need for vertical cubic optimization. |
| Coyol & Heredia Free Trade Zones | Medical Device Manufacturing, Life Sciences, High-Tech Parts | Cleanroom-grade Epoxy OEM Racking & Double-Deep Systems | Strict ISO 13485 compliance, traceability, clean surfaces, and zero contamination. |
| Limón & Atlantic Coastal Logistics Corridor | Agricultural Exports (Pineapples, Bananas, Coffee), Cold Storage | Drive-In Double Row & Galvanized Heavy-Duty Racks | Extreme tropical humidity, salt-mist coastal air, rapid container turnaround. |
| Pacific Maritime Hub (Puerto Caldera / Puntarenas) | Bulk industrial goods, raw material import processing | Heavy Duty Double Row Racking with Coil/Drum Brackets | High point-load capacity, heavy structural steel profiles resistant to marine air. |
As international corporations shift manufacturing from Asia to Central America under nearshoring strategies, Costa Rican third-party logistics (3PL) providers face strict SLA demands. Warehouse managers can no longer rely on floor stacking or low-efficiency single-tier shelving. OEM/ODM Double Row Pallet Racking delivers the density, safety, and inventory visibility mandated by modern ERP and WMS applications.
3. Localized Application Scenarios Across Costa Rican Facilities
A. Medical Device & Life Sciences (GAM Free Zones)
Costa Rica is the top exporter of medical devices in Latin America. Facilities in Coyol Free Zone demand pristine cleanroom storage environments. SolidFort's custom ODM double row racking incorporates smooth non-porous powder coating, flush beam connectors to prevent dust accumulation, and wire mesh decking that allows full air circulation and HVAC climate control compliance.
B. Cold Chain & Perishable Agri-Exports

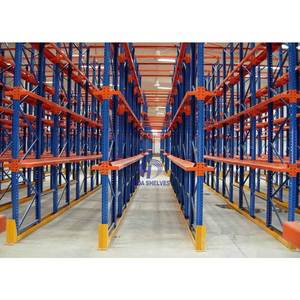

From fresh pineapples in San Carlos to refrigerated export centers in Limón, temperature-controlled cold rooms (-25°C) demand maximal spatial efficiency to minimize electricity costs per pallet. Our double-deep and double-row drive-in racking configurations utilize specialized low-temperature structural steel that maintains impact toughness without embrittlement.
C. Chemical, Oil & Heavy Industrial Storage
For chemical blending facilities and lubricant distributors near Puerto Caldera, double row systems are retrofitted with custom tubular drum cradles, secondary containment spill mesh, and anti-spark beam surface treatments, ensuring zero structural failure under heavy concentrated loads.
4. Engineering Rigor: Seismic Compliance (CSCR) & Tropical Anti-Corrosion
Designing racking systems for Costa Rica requires specialized engineering expertise due to two severe environmental challenges: High Seismic Activity and Tropical Marine Humidity.
A. Seismic Engineering under the Código Sísmico de Costa Rica (CSCR)
Costa Rica sits directly above the subduction zone of the Cocos and Caribbean tectonic plates, categorized as high seismic hazard zones. Racking systems act as unbraced flexible steel structures carrying immense overhead mass.
- Seismic Base Footplates: Engineered oversized baseplates (minimum 10mm–12mm thickness) with enlarged anchor bolt holes to dissipate ground acceleration shear forces.
- Anchoring Depth: Dual mechanical sleeve anchors or chemical adhesive anchors embedded deep into the concrete slab according to dynamic soil class ratings.
- Structural Bracing Ratios: Upright frame diagonal and horizontal bracing geometry configured under ANSI/RMI MH16.1 and FEM 10.2.02 standards to prevent dynamic sway bucking during earthquake acceleration.
B. Marine Corrosion Resistance for Coastal & High Humidity Areas
Relative humidity in Costa Rica frequently exceeds 85%, combined with airborne salt chlorides in coastal port areas. Standard painting methods degrade within months, leading to structural rust.
| Finish Option | Process Details | Recommended Costa Rica Deployment Zone |
|---|---|---|
| Electrostatic Epoxy Powder Coating | 9-stage phosphating pre-treatment + 70μm cured epoxy polyester thermosetting powder. | Dry indoor facilities, GAM logistics parks, MedTech cleanrooms. |
| Pre-Galvanized Steel Components | Coil zinc coating (Z140–Z275 grade) applied prior to roll-forming components. | Standard warehouse uprights, beam safety keys, row spacers. |
| Hot-Dip Galvanizing (HDG) | Structural steel fully submerged in molten zinc bath (>80μm coating thickness). | Coastal port warehouses (Limón/Caldera), fertilizer stores, outdoor yards. |
5. SolidFort Enterprise Advantage: Factory-Direct OEM/ODM Capability
SolidFort Storage Equipment Co., Ltd. is a direct-manufacturer operating a modern 30,000㎡ manufacturing facility in Xiamen, China. Exporting to over 53 countries, we offer complete OEM/ODM customization for global warehouse integrators, local Costa Rican contractors, and industrial buyers.
Full OEM/ODM Customization

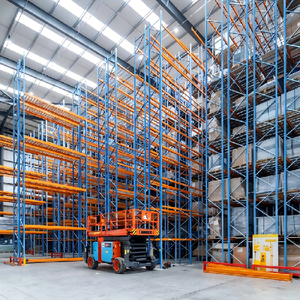

Custom frame heights up to 12+ meters, variable upright beam pitches (75mm, 76.2mm, 50mm), non-standard beam spans, and company color powder matching (RAL system).
Engineering & CAD Layout Support
Our engineering team provides comprehensive 2D CAD floor plans, 3D spatial renders, and finite element analysis (FEA) load calculation reports prior to production.
Streamlined Export Logistics
Fast standard order manufacturing within 10–15 days. Direct shipping container loading from Xiamen Port with ocean transit directly to Puerto Limón or Puerto Caldera under FOB, CIF, or DDP terms.
6. Costa Rica Logistics Buyer FAQ
Essential technical and procurement insights for warehouse managers, industrial architects, and supply chain directors importing pallet racking to Costa Rica.
Factory-direct material costs for standard heavy-duty selective double-row pallet racking typically range from USD $45 to $85 per pallet position, depending on frame height, beam load capacity (e.g., 1,500kg vs 3,000kg per level), and surface finish. High-density double-deep or drive-in systems range from USD $90 to $180 per position. Ocean freight, duty taxes, and local slab anchoring installation are calculated based on destination project location in Costa Rica.
Every engineering proposal for Costa Rica includes seismic structural verification based on RMI (ANSI MH16.1) and AS4084 guidelines, which align with CSCR requirement principles. We calculate soil profile factors, spectral acceleration values, and overhead storage loads to configure enlarged baseplate dimensions, anchor bolt diameters (e.g., M12 to M16 heavy-duty wedge anchors), and reinforced frame diagonal bracing.
Our factory production lead time is 10 to 15 business days for standard orders, and approximately 25 to 30 days for large-scale engineered projects. Ocean transit from Xiamen Port, China directly to Puerto Limón (Atlantic coast) or Puerto Caldera (Pacific coast) generally takes between 24 and 32 days. Complete container loading optimization plans are provided with every shipment to maximize freight payload.
Steel storage racking imported under HS Code 7308.90 is subject to standard Costa Rican customs tariffs and 13% VAT (IVA). However, qualifying enterprises operating within the Régimen de Zona Franca (Free Trade Zones)—such as medical device cleanrooms in Coyol Free Zone or logistics parks in Heredia—enjoy 100% exemption on import duties and taxes for capital equipment goods.
Yes. As a direct OEM/ODM manufacturer, we custom-engineer beam lengths (e.g., 2300mm, 2700mm, 3300mm, 3900mm) and upright frame depths (from 600mm to 1500mm) to match your specific pallet dimensions (GMA 48"x40", Euro pallets 1200x800mm, or industrial plastic pallets) and the exact aisle turning radius required by your forklift fleet (reach trucks, counterbalanced, or narrow-aisle pantographs).
Request a Free CAD Layout & Factory-Direct Quote for Costa Rica
Partner with a trusted global manufacturer. Speak directly with our structural engineers to receive customized warehouse drawings, seismic calculations, and factory-direct pricing for your double row pallet racking project.
