Industrial Pallet Racking & Safety Barrier Product Showcase
Factory-direct warehouse racking configurations equipped with heavy-duty RAL1023 safety yellow upright protectors, foot guards, and structural barriers tailored for Canadian warehouse operations.

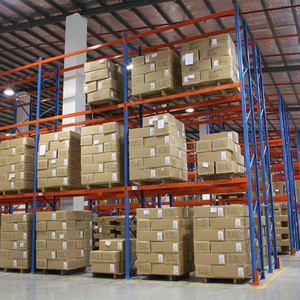

Reinforced Steel Selective Pallet Racking with Safety Guard for Project Warehouse
BHD Heavy Duty Foot Protection Barrier Pallet Rack Upright Frame Protector Security Barriers Storage Stacking Racks RAL1023
Heavy Duty Steel Pallet Rack Upright Frame Protector Stackable Safety Barrier for Warehouse Use
Industrial Factory Price Heavy Duty Beam Rack Roll Formed Steel Storage System for Pallet Loading
Warehouse Heavy Duty Steel Loft Platform Shelf Storage Attic Rack Pallet Racking Supported Mezzanine Floor Racks System
Standard Pallet Rack Warehouse Pallet Rack Assemble Racks Reliable Quality Heavy Duty Warehouse Pallet Racking System
Factory Warehouse Storage Rack 800KG Boltless Rack Heavy Duty Teardrop Pallet Racking
High-Density Shuttle Rack System Asrs 4-Way Shuttle Racking
Engineering Standards for Heavy-Duty Pallet Racking & Safety Barriers in Canada
Industrial storage facilities across Canada—ranging from fast-paced 3PL fulfillment hubs in the Greater Toronto Area (GTA) and Metro Vancouver to heavy manufacturing plants in Alberta and Quebec—operate under stringent safety regulations. Managing structural loads, equipment collisions, and seismic risk requires an integrated approach combining high-yield cold-rolled steel racking with engineered impact protection barriers.
As an OEM direct manufacturer with a 30,000㎡ production facility, SolidFort engineers custom heavy-duty pallet racking systems supplied directly to Canadian distributors, warehouse operators, and industrial contractors. By integrating standard-compliant structural framing with localized rack protection accessories (such as BHD RAL1023 upright foot guards, end-of-row heavy-duty crash barriers, and structural safety mesh), we provide verified load integrity that withstands the heavy usage of modern Material Handling Equipment (MHE).
Structural Risk Mitigation: The Critical Role of Integrated Safety Barriers
In high-throughput Canadian distribution centers, forklift impact accounts for over 85% of structural rack failures. Under regulations enforced by provincial authorities—such as Ontario’s Ministry of Labour, Immigration, Training and Skills Development (under PSR Section 7 guidelines) and WorkSafeBC—racking systems must maintain structural equilibrium without unrated plastic deformations.
Standard upright frames are vulnerable at the lowest 18 inches (450 mm), where reach trucks, counterbalanced forklifts, and automated guided vehicles (AGVs) maneuver. SolidFort’s integrated safety barrier systems solve this vulnerability through high-energy absorption structural steel components:
Heavy-Duty Foot & Upright Protectors
Engineered from 4.0mm to 6.0mm thick Q235B structural steel, our foot protectors anchor directly into concrete slabs independently of the rack uprights. This prevents impact energy from transferring directly to the vertical column, avoiding buckling and maintaining beam level tolerances.
End-of-Row Heavy Duty Double Guard Barriers
Main aisles and tunnel crossways require heavy protection. Our RAL1023 safety yellow tubular and C-channel end barriers feature continuous curved edges, designed to absorb kinetic energy from loaded forklifts turning sharp corners in narrow aisle configurations.
Canadian Regional Warehouse & Industrial Scenarios
Tailored storage designs engineered to address regional building codes, climate conditions, and operational density requirements across Canada’s key economic hubs.
Greater Toronto Area (GTA) & Ontario 3PL Hubs
Fast-paced e-commerce and retail fulfillment hubs operating around Toronto, Mississauga, and Brampton require flexible Selective Teardrop Pallet Racking paired with quick-assembly safety pins and boltless wire mesh decking. SolidFort supplies Ontario buyers with PSR-ready engineering packages, ensuring smooth sign-offs by local Professional Engineers (P.Eng).
Metro Vancouver & BC Seismic Zones
Warehouse facilities in British Columbia face stringent seismic criteria under the National Building Code of Canada (NBC). SolidFort designs seismic pallet racking featuring oversized baseplates, heavy-duty wedge anchors, and reinforced upright frame bracing engineered to absorb dynamic lateral loads while maintaining rack integrity during seismic events.
Alberta & Prairies Heavy Equipment Storage
Distribution centers in Calgary and Edmonton catering to energy, agriculture, and mining equipment demand high point-load capacities. We provide heavy-duty roll-formed steel beam racks and Structural Steel Cantilever Systems with safety pipe stops, capable of supporting heavy machinery parts exceeding 4,500 kg per level.
Sub-Zero Cold Storage & Food Distribution (Quebec & National Logistics)
Operating refrigerated and deep-freeze facilities (-25°C) in Montreal or Winnipeg requires maximizing cubic efficiency to control refrigeration energy costs. SolidFort’s High-Density Radio Shuttle Racking and Drive-In Systems utilize hot-dip galvanized or specialized cold-resistant powder coatings. Galvanization prevents rust formation caused by condensation while eliminating steel embrittlement in sub-zero environments.
Pallet Racking & Safety System Specifications Matrix
Compare load capacities, material grades, and safety features engineered for industrial storage compliance.
| Racking System Type | Structural Steel Grade | Typical Load Capacity | Safety Barrier Integration | Best Canadian Market Fit |
|---|---|---|---|---|
| Selective Pallet Racking | Q235B / Q355B Cold-Rolled Steel | 1,000 – 4,500 kg / Pair of Beams | Upright Foot Guards & Wire Mesh Decking | General Logistics, Retail, High-SKU Warehousing |
| Drive-In / Drive-Thru Racking | Heavy-Duty Steel Profile | Up to 1,500 kg / Pallet Position | Ground-Anchored Forklift Guide Rails | Cold Storage, Food & Beverage, Homogeneous Bulk |
| Radio Shuttle High-Density | Automated Structural Channel | 1,500 kg / Shuttle Carrier | End-of-Row Crash Barriers & Photoelectric Sensors | Sub-Zero Freezers, Seasonal Consumer Goods |
| Mezzanine Floor Racks System | Structural Steel Beams + Decking | 300 – 1,000 kg / ㎡ Floor Load | Perimeter Handrails, Kickplates & Safety Gates | Parts Distribution, E-Commerce Picking Lofts |
| Upright Frame Protectors | 4.0mm - 6.0mm Heavy Steel Plate | Absorbs High-Impact Kinetic Energy | RAL1023 High-Visibility Safety Finish | Essential Safety Add-On for All MHE Aisle Zones |
Canada Warehouse Storage Trends: 2025–2030 Structural Insights
1. Escalating Focus on CSA A344 Rack Maintenance Standards
Canadian facility managers are shifting from passive rack maintenance to active risk prevention. The adoption of CSA A344 guidelines requires documented annual rack inspections, mandatory replacement of buckled columns, and permanent installation of factory-made steel post protectors. Factory-integrated safety barriers streamline regulatory compliance and eliminate annual audit non-conformities.
2. Automation Readiness (AGV / AMR & 4-Way Shuttles)
With labor constraints pushing modern warehouse development in Ontario and Alberta toward automation, racking systems must maintain millimetric tolerances. Automated guided vehicles (AGVs) rely on precise structural rack geometry and heavy-duty floor-anchored steel barriers to protect sensitive laser sensors from collisions near rack uprights.
3. Maximizing Vertical Clearances in Urban Hubs
Industrial real estate rates in Vancouver and Toronto remain high. Warehouse developers are opting for clear heights up to 40 feet (12+ meters). High-bay installations demand heavier upright column profiles, structural frame tie-backs, and heavy-duty baseplates to safely support vertical loads under seismic dynamic forces.
4. Direct Factory-to-Site OEM Procurement Models
Canadian importers, general contractors, and logistics operators are bypassing third-party trading intermediaries. Sourcing directly from verified Chinese manufacturing facilities (with ISO9001 quality certification, standardized roll-forming technology, and full container shipping support) delivers significant material cost savings while enabling custom engineering adjustments.
Why Canadian Buyers Partner Direct with SolidFort
Delivering engineering accuracy, stable production capacity, and complete export support from initial layout design to direct container shipping.
30,000㎡ Modern Production Base
Located in Xiamen, China, our manufacturing facility houses automated CNC cold-roll forming lines, automatic continuous punching machines, and robotic welding stations dedicated to consistent structural quality.
Free Engineering & CAD Layout
Our internal structural engineering team evaluates your concrete slab data, pallet dimensions, and forklift specs to supply detailed CAD warehouse layouts and LARC drawings within 24–48 hours.
10–15 Days Standard Lead Time
With raw steel reserves on hand, we offer rapid 10–15 day manufacturing lead times for standard orders, with flexible FOB, CIF, or DDP shipping options delivered to Port of Vancouver, Montreal, or inland rail depots.
Planning a Storage Project in Canada?
Connect with our structural racking engineering team for layout optimizations, load calculation approvals, and factory-direct pricing tailored to your operational specifications.
Get a QuoteFrequently Asked Questions by Canadian Buyers
Comprehensive engineering and logistics answers regarding pallet rack safety, building compliance, and importing to Canada.
Upgrade Your Warehouse Safety & Storage Efficiency Today
Get direct factory pricing, comprehensive engineering CAD drawings, and high-impact safety barrier integration for your Canadian facility.
Get a Quote
